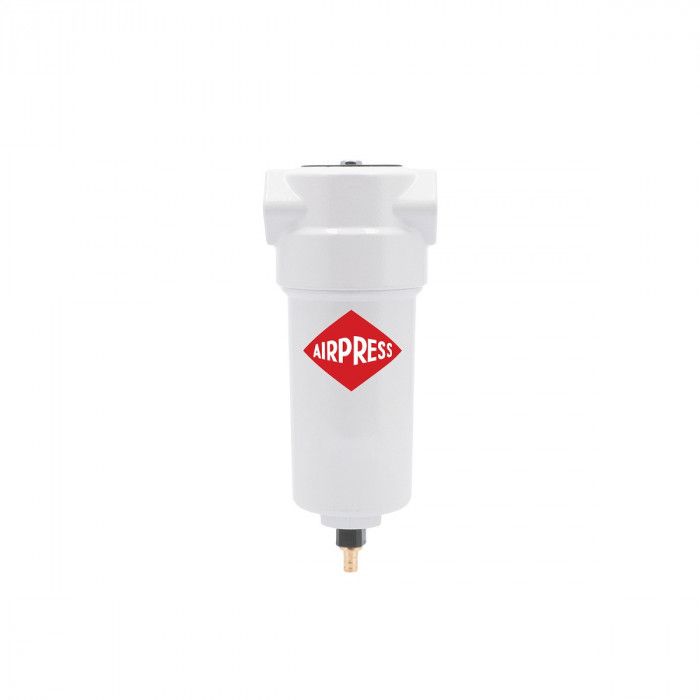

Compressed air filter R 1/2" F007 1300 l/min prefilter 1 micrometer
€195.37
Incl. Tax:
€195.37
Incl. Tax:
Incl. Tax:
Out of stock
SKU
450120A-R
Product details
| SKU | 450120A-R |
|---|---|
| EAN 13 | 8712418396140 |
| Weight (netto) (kg) | 0.78 kg780 g |
| Gross weight (kg) | 0.92 kg920 g |
| Length (mm) | 135 mm1.35 dm |
| Width (mm) | 305 mm3.05 dm |
| Height (mm) | 130 mm1.3 dm |
| Diameter (mm) | 88 |
| Series | R |
| Housing material | Aluminium |
| Element material | Borosilicate micro fibres |
| Filter type | Prefilter |
| Type condensation drain | Automatic |
|---|---|
| Replaceable cartridge | Yes |
| Distance sensor | No |
| Pressure reducer | No |
| Filtration (µm) | 1 |
| Air connection (") | 1/2 |
| Working pressure (bar) | 0 - 16 |
| Maximum pressure (bar) | 16 |
| Flow rate (l/min) | 1300 |
| Flow rate (m3/h) | 78 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 65 |
