Screw Compressor APS X 10 Combi Dry 10 bar 10 HP/7.5 kW 970 l/min 500 l
€5,020.00
Incl. Tax:
€5,020.00
Incl. Tax:
Incl. Tax:
Out of stock
SKU
369010-P
Product details
| SKU | 369010-P |
|---|---|
| EAN 13 | 8712418412246 |
| Units per product (pcs.) | 1 |
| Weight (netto) (kg) | 405 kg |
| Length (mm) | 1,902 mm1.902 m |
| Width (mm) | 620 mm6.2 dm |
| Height (mm) | 1,680 mm1.68 m |
| Drive | Direct driven 1:1 |
| Start | Y-∆ |
| Motor type | AM |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Motor efficiency class | IE4 |
| Stages | 1 |
| Variable speed (IVR) | No |
| Pump speed (rpm) | 2940 |

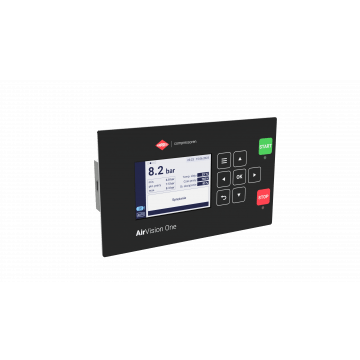

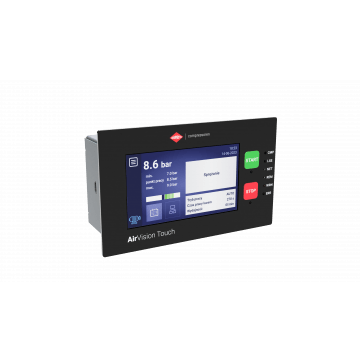

| Control panel | MAM-860 |
| Available languages | Dutch, Polish, English |
| Air Receiver | Yes |
|---|---|
| Capacity air receiver (l) | 500 |
| Galvanized tank | No |
| Dryer | Yes |
| Cooling air volume (m3/h) | 3,000 m³/h50 m³/min |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 6 bar |
| Free air delivery (l/min) | 970 L/m1.617 L/h |
| Free air delivery (m3/h) | 58.2 m³/h2.694 L/m |
| Noise level dB (A) (0 m) | 63 |
| Noise level dB(A) (4 m) | 43 |
| Main air connection (") | 3/4 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
