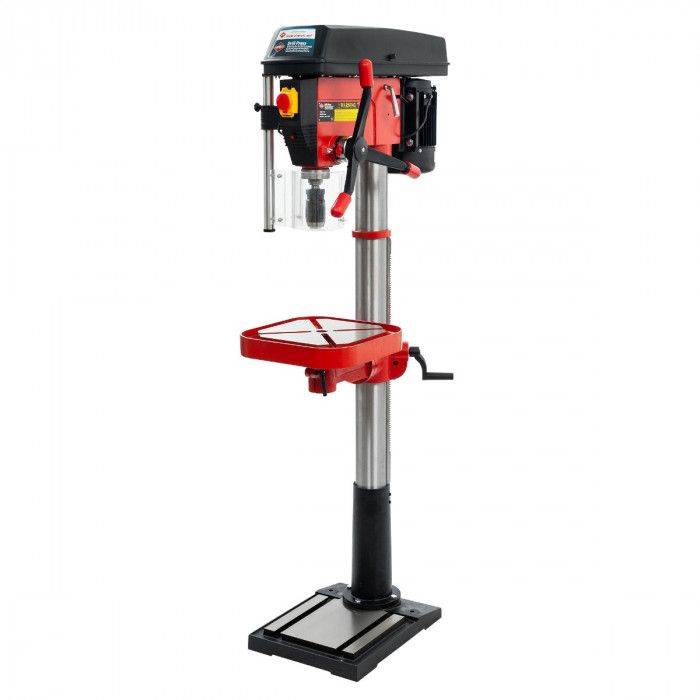

Pillar drilling machine 22-1710 12 speeds
Out of stock
SKU
77351
| Motor power (hp / kW) | 1100 W |
|---|---|
| Drill diameter (max. mm) | 32 |
| EAN 13 | 8712418310740 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 115 kg |
| Length (mm) | 360 mm3.6 dm |
| Width (mm) | 470 mm4.7 dm |
| Height (mm) | 1,710 mm1.71 m |
| Motor power (hp / kW) | 1100 W |
| Rounds per minute (RPM) | 150, 240, 270, 330, 430, 470, 830, 1030, 1270, 1430, 1790, 2450 |
| Number of gears | 12 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| Drill diameter (max. mm) | 32 |
|---|---|
| Drill head connection | MT4 |
| Drill head reach (mm) | 5-20 |
| Spindle reach (mm) | 120 |
| Distance between table and spindle (mm) | 220 |
| Table size (mm) | 360 x 360 |
| Foot size (mm) | 470 x 360 |
| Column diameter (mm) | 92 |
| SKU | 77351 |
