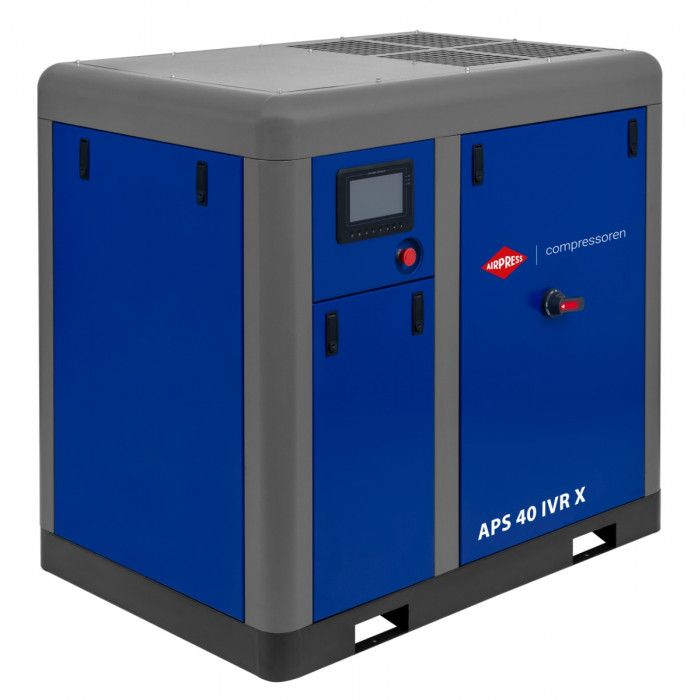

Screw Compressor APS 40 IVR X 10 bar 40 hp/30 kW 1050-4500 l/min
Out of stock
The Airpress APS 40 IVR X compressor is suitable for large companies that, for example, radiate and therefore have a very variable decrease in compressed air. The compressor has a capacity of 40 hp and 30 kW. With a size of 130 x 95 x 136 cm and a weight of 550 kg, this is one of the larger compressors from Airpress. The compressor has a minimum capacity of 1050 liters per minute and a maximum capacity of 4500 liters per minute.
Product details
| SKU | 369440-IVR |
|---|---|
| EAN 13 | 8712418372359 |
| Weight (netto) (kg) | 550 kg |
| Length (mm) | 1,300 mm1.3 m |
| Width (mm) | 950 mm9.5 dm |
| Height (mm) | 1,360 mm1.36 m |
| Drive | Direct driven 1:1 |
| Start | Inverter |
| Motor type | PM |
| Motor power (hp / kW) | 40.0 HP / 30.0 kW |
| Motor efficiency class | IE4 |
| Stages | 1 |
| Variable speed (IVR) | Yes |
| Minimum rpm 10 bar (rpm/Hz) | 820 rpm13.667 Hz |
| Maximum rpm 10 bar (rpm/Hz) | 2,200 rpm/Hz132 kHz |
| Minimum energy consumption 10 bar (kW/m3/h) | 8.65 |
| Maximum energy consumption 10 bar (kW/m3/h) | 12.6 |
| Control panel | MAM-6080 |
| Available languages | Dutch, Polish, German, English |
| Air Receiver | No |
| Galvanized tank | No |
| Dryer | No |
|---|---|
| Cooling air volume (m3/h) | 8,000 m³/h2.222 kL/s |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 6 bar |
| Free air delivery at 8 bar (l/min) | 4,500 L/m7.5 L/h |
| Free air delivery at 10 bar (l/min) | 4,240 L/m7.067 L/h |
| Minimum free air delivery (l/min) | 1,050 L/m1.75 L/h |
| Minimum free air delivery (m3/h) | 63 m³/h1.05 m³/min |
| Maximum free air delivery (l/min) | 4,500 L/m7.5 L/h |
| Maximum free air delivery (m3/h) | 270 m³/h4.5 m³/min |
| Noise level dB (A) (0 m) | 70 |
| Noise level dB(A) (4 m) | 50 |
| Main air connection (") | 1 1/4 |
| Minimum ambient temperature (°C) | 10 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | No |
| Oil capacity (l) | 15 |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP55 |
Recommended
Description
A compressor with great qualities and characteristics. This 30 kW is built in such a way that it saves maximum on energy consumption and maximum efficiency. A directly coupled screw block to a permanent magnet motor. Thanks to the oversized screw block, this compressor delivers maximum output even at low revs. The temperature-controlled fan also only runs when it is needed, so as long as the oil temperature is below the set value, it does not run and there is also no power consumption. This compressor can deliver approximately 4500 liters per minute. The full color touch screen makes reading and adjusting very easy. Because there are panels all around, the machine is very easily accessible. The service interval of 3,000 hours also ensures lower maintenance costs.
This machine is very suitable for large companies that, for example, radiate and therefore have a very varying decrease in compressed air.
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
