Silent Compressor APZ 1300+ 11 bar 10 hp 747 l/min 3 l
€4,021.44
Incl. Tax:
€4,021.44
Incl. Tax:
Incl. Tax:
Out of stock
SKU
34750-S
Product details
| SKU | 34750-S |
|---|---|
| EAN 13 | 8712418023558 |
| Weight (netto) (kg) | 225 kg |
| Length (mm) | 870 mm8.7 dm |
| Width (mm) | 640 mm6.4 dm |
| Height (mm) | 1,120 mm1.12 m |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Pump Type | K50 |
| Cylinders | 2 |
| Stages | 2 |
| Pump speed (rpm) | 1000 |

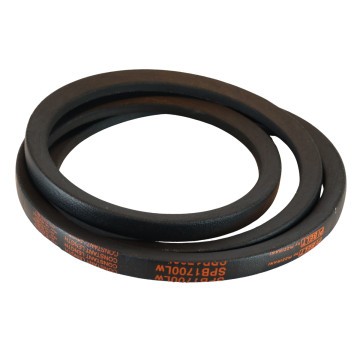

| Belt size | SPB 1700 |
| Flywheel diameter (mm) | 450 mm4.5 dm |
| Pulley diameter (mm) | 150 mm1.5 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 3 (internal / expansion) |
| Galvanized tank | No |
|---|---|
| Workload (labor/rest %) | 60/40 |
| Maximum pressure (bar) | 11 |
| Cut-in pressure (bar) | 9 bar |
| Intake capacity (l/min) | 1,074 L/m1.79 L/h |
| Free air delivery (l/min) | 747 L/m1.245 L/h |
| Free air delivery (m3/h) | 44.82 m³/h2.075 L/m |
| Noise level dB (A) (0 m) | 68 |
| Noise level dB(A) (4 m) | 48 |
| Noise level dB(A) (7 m) | 43 |
| Sound volume reduction | Yes |
| Main air connection (") | 3/4 |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | Yes |
| Wheels | No |
| Filter with reducer | No |
