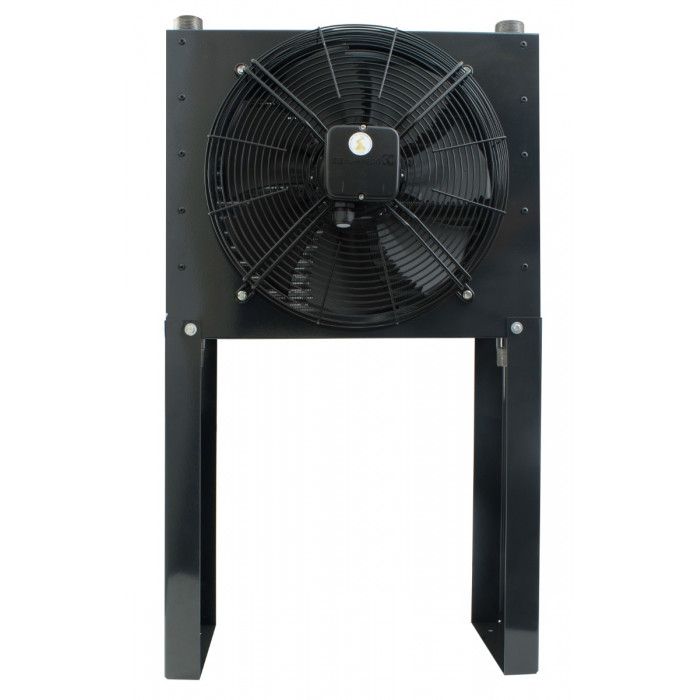

Aftercooler AAC 6500

minus-circle Out of stock

SKU 350065
Product details Documents Reviews

Product details

SKU 350065
Ambient temperature (°C) 25
Inlet air temperature (°C) 120 °C
Max. inlet air temperature (°C) 170 °C
Inlet air relative humidity (%) 70
Flow 6,500 L/m10.833 L/h
Flow rate (m3/h) 390
Pipe size (") G 2"
Cooling air volume (l/min) 116,667 L/m194.445 L/h
Cooling air volume (m3/h) 7,000 m³/h1.944 kL/s
Working pressure (bar) 7
Maximum pressure (bar) 15
Pressure drop (bar) 0.15 bar1.53 mH2O
Fan power rating (W) 750
Voltage (V) 400 V / 50 Hz / 3 Ph
EAN 13 8712418400182
Weight (netto) (kg) 44 kg
Length (mm) 1,175 mm1.175 m
Width (mm) 440 mm4.4 dm
Height (mm) 980 mm9.8 dm
Fan diameter (mm) 500

Documents & Manuals

document-report Download PDF document-text Manual EN/PL 350011, 350021, 350037, 350049, 350065, 350087, 350129, 350165, 350210, 350260, 350315, 350420, 350515, 350750
