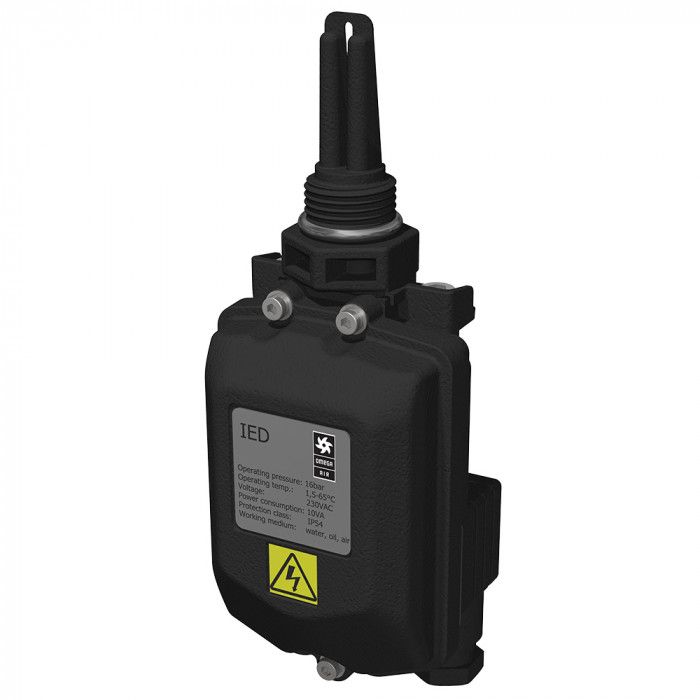

Automatic condensation drain filter 230 V zero-loss

minus-circle Out of stock

SKU 36233-IED
Air connection (") 1/2
Voltage (V) 230 V / 50 Hz / 1 Ph
Working pressure (bar) 0 - 16
EAN 13 8712418328424
Manufacturer Airpress Polska Sp. z o.o.
Weight (netto) (kg) 0.3 kg300 g
Length (mm) 61 mm6.1 cm
Width (mm) 60 mm6 cm
Height (mm) 161 mm1.61 dm
Air connection (") 1/2
Type condensation drain Automatic
Voltage (V) 230 V / 50 Hz / 1 Ph
Working pressure (bar) 0 - 16
Minimum ambient temperature (°C) 1.5
Maximum ambient temperature (°C) 65
Drain capacity at 7 bar (l/min) 0.13 L/min2.167 ml/s
Drain capacity at 7 bar (l/h) 8 L/h2.222 ml/s
Cable length (m) 2.9 m
SKU 36233-IED
