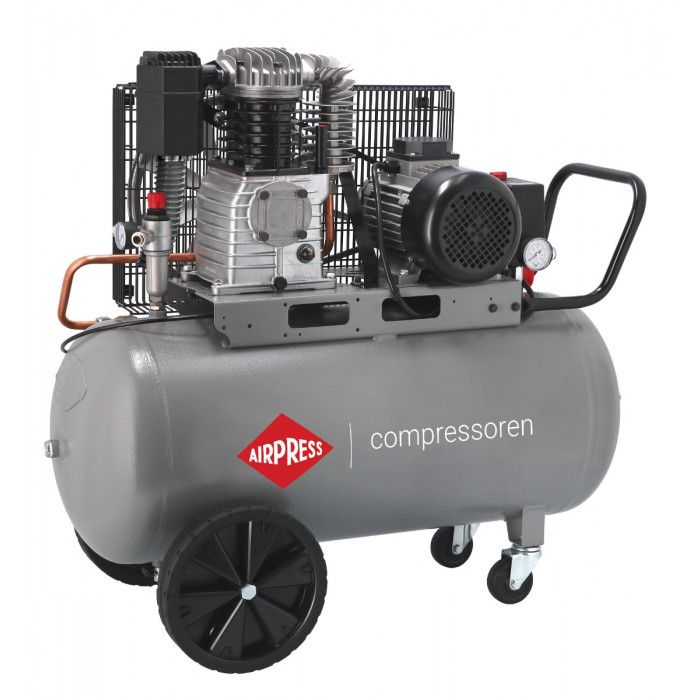

Compressor HK 425-100 10 bar 3 hp 400 l/min 100 l
€927.48
Incl. Tax:
€927.48
Incl. Tax:
Incl. Tax:
Out of stock
SKU
360501
Product details
| SKU | 360501 |
|---|---|
| EAN 13 | 8712418332391 |
| Weight (netto) (kg) | 81 kg |
| Length (mm) | 980 mm9.8 dm |
| Width (mm) | 480 mm4.8 dm |
| Height (mm) | 900 mm9 dm |
| Drive | V-belt driven |
| Start | Direct |
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
| Pump Type | K17C |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 1250 |
| Belt size | A48 (1219) |
| Flywheel diameter (mm) | 320 mm3.2 dm |
| Pulley diameter (mm) | 110 mm1.1 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 100 |
| Galvanized tank | No |
| Workload (labor/rest %) | 50/50 |
| Maximum pressure (bar) | 10 |
|---|---|
| Cut-in pressure (bar) | 8 bar |
| Intake capacity (l/min) | 400 L/m2.4 kL/s |
| Free air delivery (l/min) | 317 L/m1.902 kL/s |
| Free air delivery (m3/h) | 19.02 m³/h5.283 dm³/s |
| Noise level dB (A) (0 m) | 97 |
| Noise level dB(A) (4 m) | 77 |
| Noise level dB(A) (7 m) | 72 |
| Sound volume reduction | No |
| Connection type | 2 Universal + Euro |
| Main air connection (") | 1/2 |
| Number of couplings air connections | 2 - 3 |
| Number of reducable couplings air connections | 2 |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | Yes |
