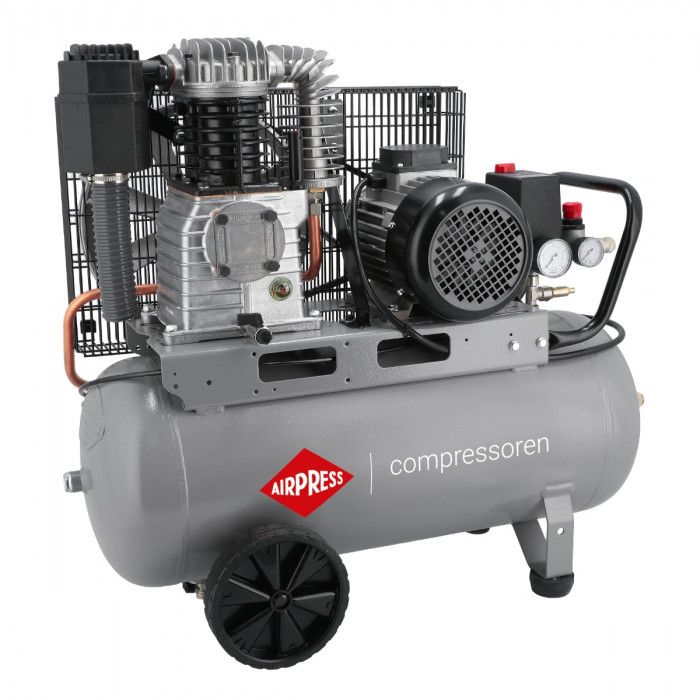

Compressor HK 425-50 Pro 10 bar 3 hp/2.2 kW 317 l/min 50 l
Out of stock
SKU
360533
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
|---|---|
| Capacity air receiver (l) | 50 |
| Maximum pressure (bar) | 10 |
| Intake capacity (l/min) | 400 L/min6.667 L/s |
| Free air delivery (l/min)* | 200 L/min3.333 L/s |
| Noise level dB (A) (0 m) | 94 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418361582 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 53 kg |
| Length (mm) | 780 mm7.8 dm |
| Width (mm) | 410 mm4.1 dm |
| Height (mm) | 740 mm7.4 dm |
| Drive | V-belt driven |
| Start | Direct |
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
| Pump Type | K17C |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 1250 |

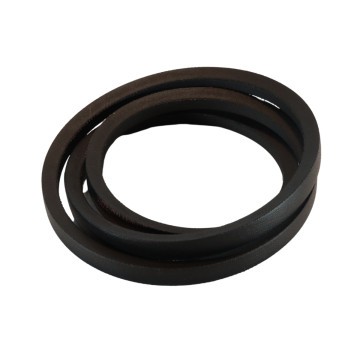

| Belt size | A48 (1219) |
| Flywheel diameter (mm) | 320 mm3.2 dm |
| Pulley diameter (mm) | 110 mm1.1 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 50 |
| Galvanized tank | No |
| Workload (labor/rest %) | 50/50 |
| Maximum pressure (bar) | 10 |
|---|---|
| Minimum working pressure (bar) | 8 bar |
| Intake capacity (l/min) | 400 L/min6.667 L/s |
| Free air delivery (l/min)* | 200 L/min3.333 L/s |
| Free air delivery (m3/h)* | 19.02 m³/h5.283 dm³/s |
| Noise level dB (A) (0 m) | 94 |
| Noise level dB(A) (4 m) | 74 |
| Noise level dB(A) (7 m) | 69 |
| Sound volume reduction | No |
| Connection type | Universal + Euro |
| Main air connection (") | 1/2 |
| Number of couplings air connections | 1 - 2 |
| Number of reducable couplings air connections | 1 |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
| SKU | 360533 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
