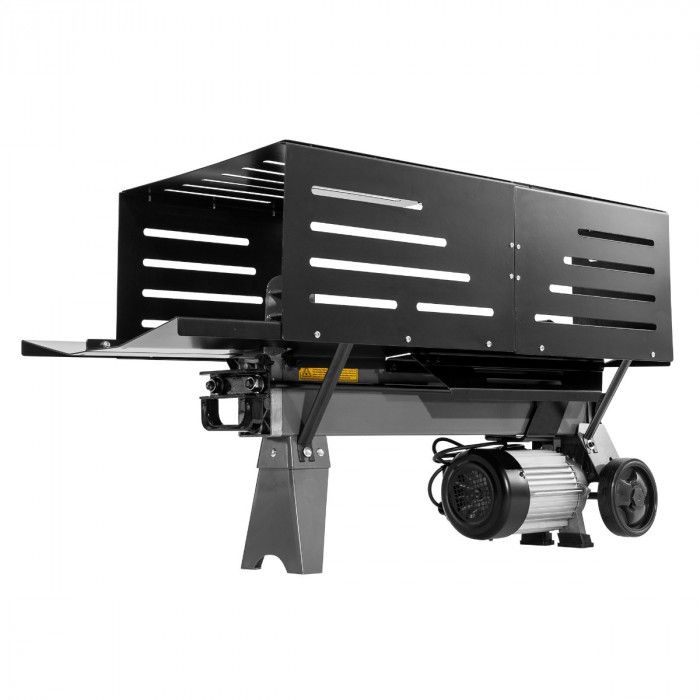

Log splitter horizontal model 5 ton
Out of stock
SKU
772005
| Weight (netto) (kg) | 55 kg |
|---|---|
| Force (kg) | 5.000 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
Electric / hydraulic drive
| EAN 13 | 8712418382884 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 55 kg |
| Length (mm) | 1,160 mm1.16 m |
| Width (mm) | 425 mm4.25 dm |
| Height (mm) | 610 mm6.1 dm |
| Orientation | Horizontal |
| Force (kg) | 5.000 |
| Max. log diameter (mm) | 250 mm2.5 dm |
| Max. log length (mm) | 200-520 |
| Stroke length (mm) | 450 |
| Splitting feed speed (cm/s) | 3.1 |
|---|---|
| Return feed speed (cm/s) | 17.3 |
| Hydraulic oil capacity (L) | 3.5 L1.337 kanna |
| Oil type | D3857 |
| Hydraulic pressure Mpa (bar) | 20.6 Mpa (206 bar) |
| Ambient temperature (°C) | 5 - 40 |
| Motor power (kW) | 2.2 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| Isolation class | IP 54 |
| Anti-kickback pawls | Durable shield |
| SKU | 772005 |
