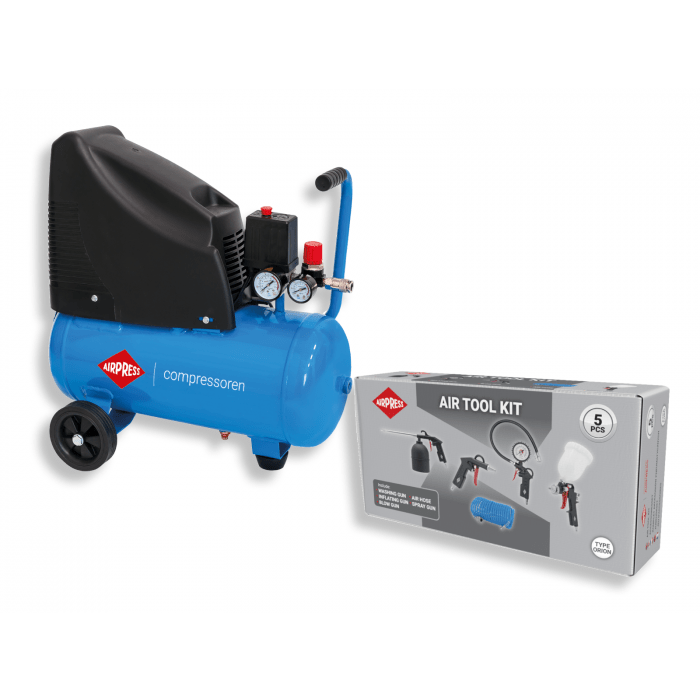

Oilfree compressor HLO 215-25 + Air tool kit type Orion 5 pieces
Out of stock
SKU
36741-K1-45892
| Motor power (hp / kW) | 1.5 HP / 1.1 kW |
|---|---|
| Capacity air receiver (l) | 24 |
| Maximum pressure (bar) | 8 |
| Intake capacity (l/min) | 215 L/min3.583 L/s |
| Free air delivery (l/min)* | 120 L/min2 L/s |
| Noise level dB (A) (0 m) | 99 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| EAN 13 | 87124180193770 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 21 kg |
| Length (mm) | 580 mm5.8 dm |
| Width (mm) | 255 mm2.55 dm |
| Height (mm) | 580 mm5.8 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 1.5 HP / 1.1 kW |
| Cylinders | 1 |
| Stages | 1 |
| Pump speed (rpm) | 2850 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 24 |
| Galvanized tank | No |
| Workload (labor/rest %) | 20/80 |
| Maximum pressure (bar) | 8 |
| Minimum working pressure (bar) | 6 bar |
| Intake capacity (l/min) | 215 L/min3.583 L/s |
|---|---|
| Free air delivery (l/min)* | 120 L/min2 L/s |
| Free air delivery (m3/h)* | 7.2 m³/h2 dm³/s |
| Noise level dB (A) (0 m) | 99 |
| Noise level dB(A) (4 m) | 79 |
| Noise level dB(A) (7 m) | 74 |
| Sound volume reduction | No |
| Main air connection (") | 1/4 |
| Number of couplings air connections | 1 |
| Number of reducable couplings air connections | 1 |
| Oilfree | Yes |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
| SKU | 36741-K1-45892 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
