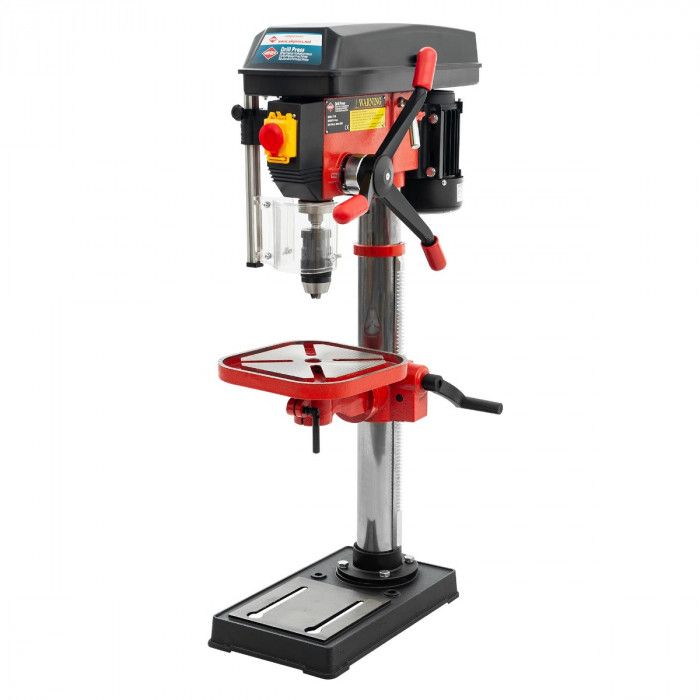

Pillar drilling machine 16-980 16 speeds
€256.06
Incl. Tax:
€256.06
Incl. Tax:
Incl. Tax:
Out of stock
SKU
77316
Product details
| SKU | 77316 |
|---|---|
| EAN 13 | 8712418310726 |
| Weight (netto) (kg) | 42 kg |
| Gross weight (kg) | 45 kg |
| Length (mm) | 770 mm7.7 dm |
| Width (mm) | 450 mm4.5 dm |
| Height (mm) | 270 mm2.7 dm |
| Motor power (hp / kW) | 550 W |
| Rounds per minute (RPM) | 180, 270, 310, 420, 430, 470, 580, 630, 650, 720, 1230, 1320, 1460, 1880, 1950, 2770 |
| Number of gears | 16 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
|---|---|
| Drill diameter (max. mm) | 16 |
| Drill head connection | MT2 |
| Drill head reach (mm) | 3-16 |
| Spindle reach (mm) | 80 |
| Distance between table and spindle (mm) | 162 |
| Table size (mm) | 250 x 250 |
| Foot size (mm) | 420 x 250 |
| Column diameter (mm) | 72 |
