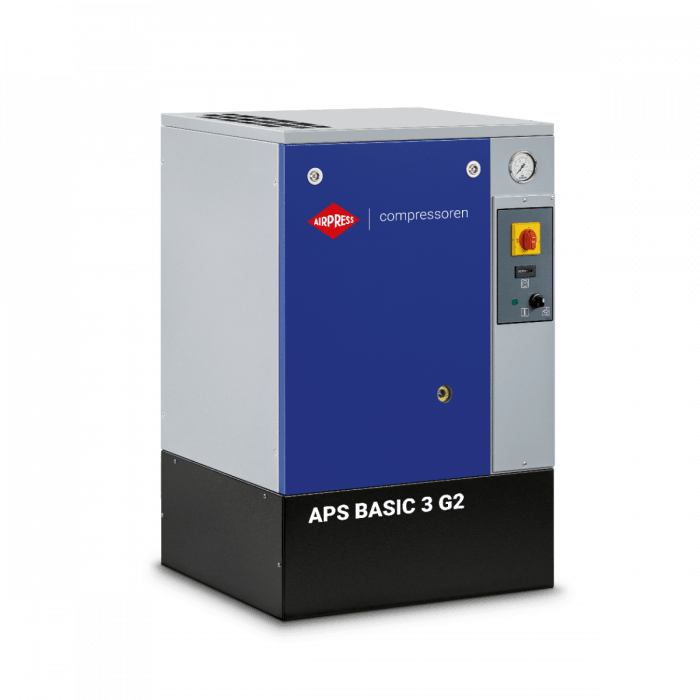

Schroefcompressor APS 3 Basic 10 bar 3 pk 294 l/min
Out of stock
SKU
362803
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
|---|---|
| Variable speed (IVR) | No |
| Air Receiver | No |
| Dryer | No |
| Maximum pressure (bar) | 10 |
| Free air delivery (l/min)* | 294 L/min4.9 L/s |
| Free air delivery (m3/h)* | 17.64 m³/h4.9 dm³/s |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418399868 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 110 kg |
| Length (mm) | 620 mm6.2 dm |
| Width (mm) | 630 mm6.3 dm |
| Height (mm) | 950 mm9.5 dm |
| Drive | V-belt driven |
| Start | Direct |
| Motor type | AC |
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
| Motor efficiency class | IE3 |
| Air-end | C43 |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ON/OFF |
| Air Receiver | No |
| Galvanized tank | No |
| Dryer | No |
|---|---|
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Minimum working pressure (bar) | 8 bar |
| Free air delivery (l/min)* | 294 L/min4.9 L/s |
| Free air delivery (m3/h)* | 17.64 m³/h4.9 dm³/s |
| Noise level dB (A) (0 m) | 61 |
| Noise level dB(A) (4 m) | 41 |
| Main air connection (") | 3/4 |
| Minimum ambient temperature (°C) | 5 |
| Maximum ambient temperature (°C) | 40 |
| Oilfree | No |
| Oil capacity (l) | 2.50 |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| SKU | 362803 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
