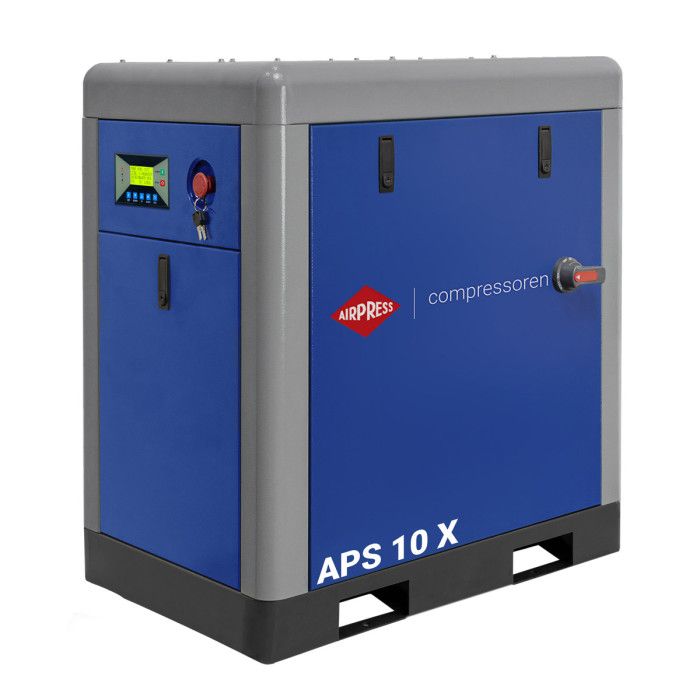

Screw compressor APS 10 X 10 bar 10 HP / 7.5 kW 970 l/min
Out of stock
SKU
369410
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
|---|---|
| Variable speed (IVR) | No |
| Pump speed (rpm) | 2940 |
| Air Receiver | No |
| Maximum pressure (bar) | 10 |
| Free air delivery (l/min)* | 970 L/min16.167 L/s |
| Free air delivery (m3/h)* | 58.2 m³/h16.167 dm³/s |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418411294 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 200 kg |
| Length (mm) | 860 mm8.6 dm |
| Width (mm) | 620 mm6.2 dm |
| Height (mm) | 925 mm9.25 dm |
| Drive | Direct driven 1:1 |
| Start | Y-∆ |
| Motor type | AM |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Motor efficiency class | IE4 |
| Stages | 1 |
| Variable speed (IVR) | No |
| Pump speed (rpm) | 2940 |
| Control panel | MAM-860 |
| Available languages | Dutch, Polish, English |
| Air Receiver | No |
|---|---|
| Galvanized tank | No |
| Cooling air volume (m3/h) | 3,000 m³/h50 m³/min |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Minimum working pressure (bar) | 6 bar |
| Free air delivery (l/min)* | 970 L/min16.167 L/s |
| Free air delivery (m3/h)* | 58.2 m³/h16.167 dm³/s |
| Noise level dB (A) (0 m) | 63 |
| Noise level dB(A) (4 m) | 43 |
| Main air connection (") | 3/4 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| SKU | 369410 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
