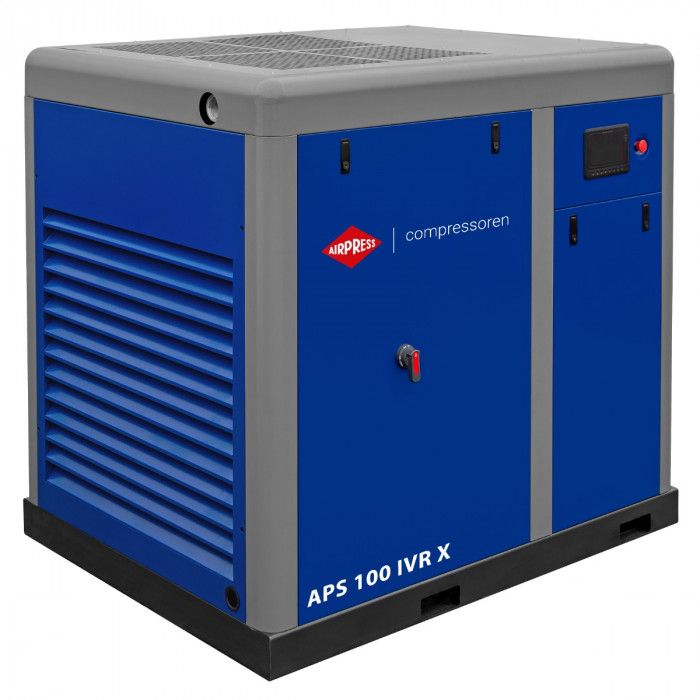

Screw Compressor APS 100 IVR X 10 bar 100 hp 4100-12400 l/min
€23,198.80
Incl. Tax:
€23,198.80
Incl. Tax:
Incl. Tax:
Out of stock
SKU
3694100-IVR
Product details
| SKU | 3694100-IVR |
|---|---|
| EAN 13 | 8712418388299 |
| Weight (netto) (kg) | 1,250 kg1.25 mt |
| Length (mm) | 1,772 mm1.772 m |
| Width (mm) | 1,300 mm1.3 m |
| Height (mm) | 1,578 mm1.578 m |
| Drive | Direct driven 1:1 |
| Start | Inverter |
| Motor type | PM |
| Motor power (hp / kW) | 100.0 HP / 75.0 kW |
| Motor efficiency class | IE4 |
| Stages | 1 |
| Variable speed (IVR) | Yes |
| Minimum rpm 10 bar (rpm/Hz) | 900 rpm15 Hz |
| Maximum rpm 10 bar (rpm/Hz) | 2,700 rpm/Hz162 kHz |
| Minimum energy consumption 10 bar (kW/m3/h) | 7.8 |
| Maximum energy consumption 10 bar (kW/m3/h) | 12.9 |
| Control panel | MAM-6080 |
| Available languages | Dutch, Polish, German, English |
| Air Receiver | No |
| Galvanized tank | No |
| Dryer | No |
|---|---|
| Cooling air volume (m3/h) | 13,500 m³/h1.042 L/h |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 6 bar |
| Free air delivery at 8 bar (l/min) | 12,400 L/m20.667 L/h |
| Free air delivery at 10 bar (l/min) | 10,700 L/m17.833 L/h |
| Minimum free air delivery (l/min) | 4,100 L/m6.833 L/h |
| Minimum free air delivery (m3/h) | 246 m³/h4.1 m³/min |
| Maximum free air delivery (l/min) | 12,400 L/m20.667 L/h |
| Maximum free air delivery (m3/h) | 744 m³/h12.4 m³/min |
| Noise level dB (A) (0 m) | 85 |
| Noise level dB(A) (4 m) | 65 |
| Main air connection (") | 2 |
| Minimum ambient temperature (°C) | 10 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | No |
| Oil capacity (l) | 50 |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP55 |
