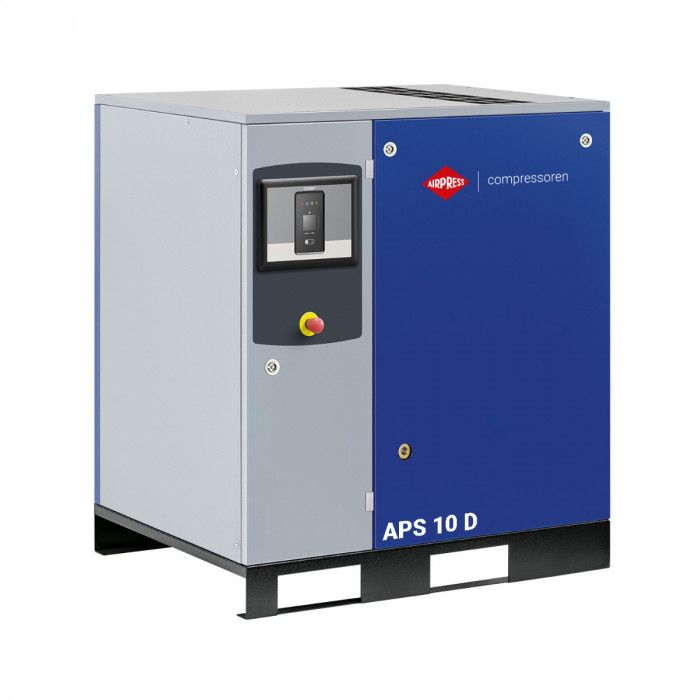

Screw Compressor APS 10D G3 10 bar 10 hp 1133 l/min
€2,950,149.86
Incl. Tax:
€2,950,149.86
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36410-DG3
Product details
| SKU | 36410-DG3 |
|---|---|
| EAN 13 | 8712418413533 |
| Weight (netto) (kg) | 215 kg |
| Length (mm) | 1,000 mm1 m |
| Width (mm) | 650 mm6.5 dm |
| Height (mm) | 1,040 mm1.04 m |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Motor efficiency class | IE3 |
| Air-end | C55* |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ES 4000 S |
| Air Receiver | No |
|---|---|
| Galvanized tank | No |
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Free air delivery (l/min) | 1,133 L/m1.888 L/h |
| Free air delivery (m3/h) | 68 m³/h1.133 m³/min |
| Noise level dB (A) (0 m) | 66 |
| Noise level dB(A) (4 m) | 46 |
| Main air connection (") | 3/4 |
| Minimum ambient temperature (°C) | 4 |
| Maximum ambient temperature (°C) | 46 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
