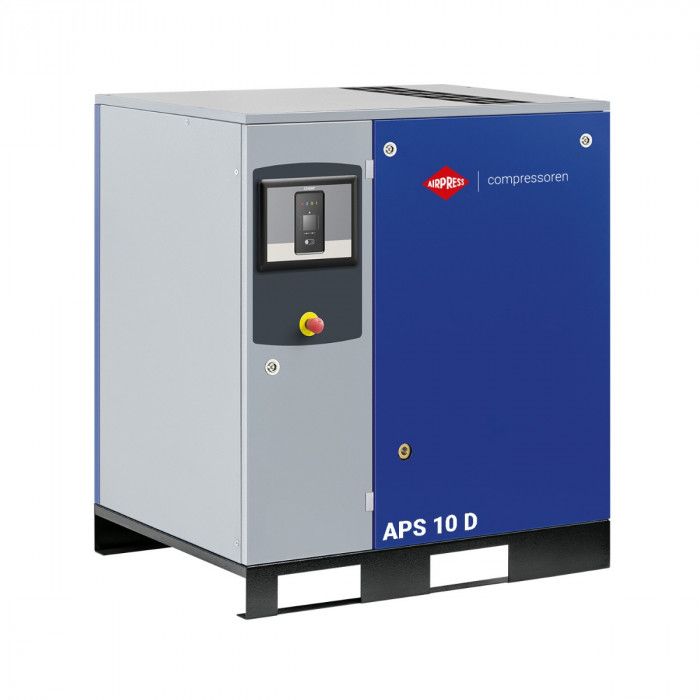

Screw Compressor APS 10D G3 13 bar 10 hp / 7.5 kW 884 l/min

Out of stock

SKU 36410-DG3-13

Motor power (hp / kW)	10.0 HP / 7.5 kW
Variable speed (IVR)	No
Air Receiver	No
Dryer	No
Maximum pressure (bar)	13
Free air delivery (l/min)*	884 L/min14.733 L/s
Free air delivery (m3/h)*	53 m³/h14.722 dm³/s
Voltage (V)	400 V / 50 Hz / 3 Ph

EAN 13	8712418415513
Manufacturer	Airpress Polska Sp. z o.o.
Weight (netto) (kg)	215 kg
Length (mm)	1,000 mm1 m
Width (mm)	650 mm6.5 dm
Height (mm)	1,045 mm1.045 m
Drive	V-belt driven
Start	Y-∆
Motor type	AC
Motor power (hp / kW)	10.0 HP / 7.5 kW
Motor efficiency class	IE3
Air-end	C55*
Stages	1
Variable speed (IVR)	No
Control panel	ES 4000 S
Air Receiver	No

Galvanized tank	No
Dryer	No
Workload (labor/rest %)	100/0
Maximum pressure (bar)	13
Free air delivery (l/min)*	884 L/min14.733 L/s
Free air delivery (m3/h)*	53 m³/h14.722 dm³/s
Noise level dB (A) (0 m)	66
Noise level dB(A) (4 m)	46
Main air connection (")	3/4
Minimum ambient temperature (°C)	4
Maximum ambient temperature (°C)	46
Oilfree	No
Plug type	EU
Voltage (V)	400 V / 50 Hz / 3 Ph
SKU	36410-DG3-13
