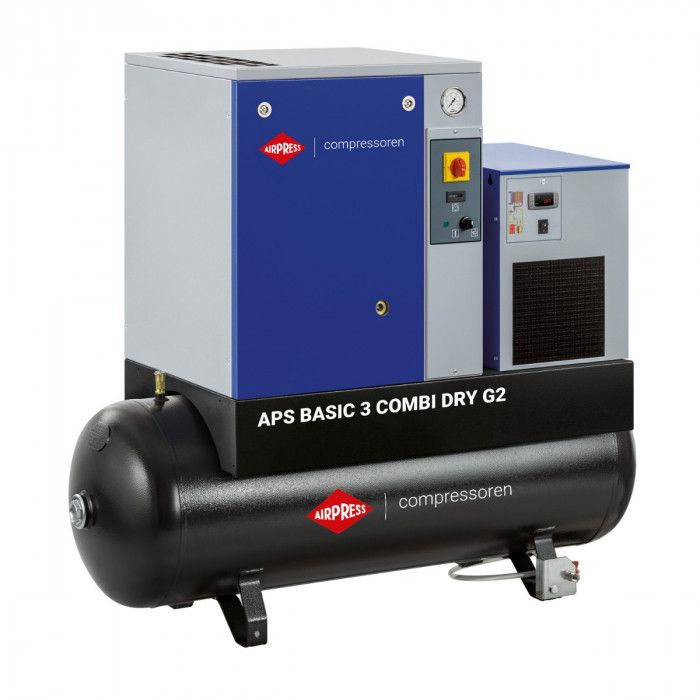

Screw Compressor APS 3 Basic Combi Dry G2 10 bar 3 hp 294 l/min 200 l

Out of stock

SKU 362953

Motor power (hp / kW)	3.0 HP / 2.2 kW
Variable speed (IVR)	No
Air Receiver	Yes
Dryer	Yes
Maximum pressure (bar)	10
Free air delivery (l/min)*	294 L/min4.9 L/s
Free air delivery (m3/h)*	17.64 m³/h4.9 dm³/s
Voltage (V)	400 V / 50 Hz / 3 Ph

EAN 13	8712418399882
Manufacturer	Airpress Polska Sp. z o.o.
Weight (netto) (kg)	190 kg
Length (mm)	1,430 mm1.43 m
Width (mm)	600 mm6 dm
Height (mm)	1,260 mm1.26 m
Drive	V-belt driven
Start	Direct
Motor type	AC
Motor power (hp / kW)	3.0 HP / 2.2 kW
Motor efficiency class	IE3
Air-end	C43
Stages	1
Variable speed (IVR)	No
Control panel	ON/OFF
Air Receiver	Yes
Capacity air receiver (l)	200
Galvanized tank	No
Dryer	Yes

Dryer voltage (V)	230
Refrigerant	R513A
Cooling air volume (m3/h)	288 m³/h4.8 m³/min
Workload (labor/rest %)	100/0
Maximum pressure (bar)	10
Minimum working pressure (bar)	8 bar
Free air delivery (l/min)*	294 L/min4.9 L/s
Free air delivery (m3/h)*	17.64 m³/h4.9 dm³/s
Noise level dB (A) (0 m)	61
Noise level dB(A) (4 m)	41
Main air connection (")	1/2" - 3/4"
Minimum ambient temperature (°C)	5
Maximum ambient temperature (°C)	40
Oilfree	No
Oil capacity (l)	2.50
Plug type	EU
Voltage (V)	400 V / 50 Hz / 3 Ph
SKU	362953
