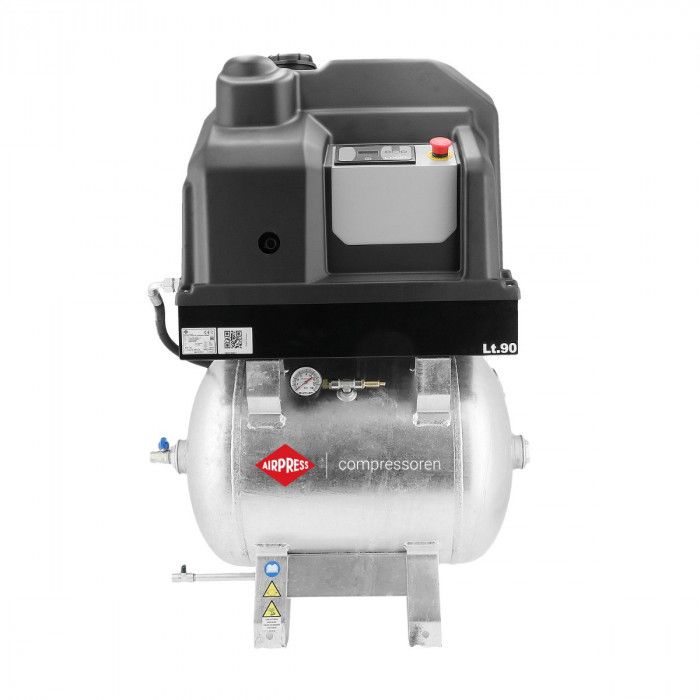

Screw Compressor APS 3 Combi Compact 400V 10 bar 3.0 hp/2.2 kW 261 l/min 90 l galvanized
Kleiner Schraubenkompressor
Besonders platzsparend (Standfläche
Verzinkt
Out of stock
SKU
360903-CG
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
|---|---|
| Variable speed (IVR) | No |
| Air Receiver | Yes |
| Maximum pressure (bar) | 10 |
| Free air delivery (l/min)* | 261 L/min4.35 L/s |
| Free air delivery (m3/h)* | 15.66 m³/h4.35 dm³/s |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418409826 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 105 kg |
| Length (mm) | 750 mm7.5 dm |
| Width (mm) | 465 mm4.65 dm |
| Height (mm) | 1,144 mm1.144 m |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor type | AC |
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | Login Zero |
| Air Receiver | Yes |
| Capacity air receiver (l) | 90 |
|---|---|
| Galvanized tank | Yes |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Free air delivery (l/min)* | 261 L/min4.35 L/s |
| Free air delivery (m3/h)* | 15.66 m³/h4.35 dm³/s |
| Noise level dB (A) (0 m) | 65 |
| Noise level dB(A) (4 m) | 45 |
| Main air connection (") | 1/2 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP54 |
| SKU | 360903-CG |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
