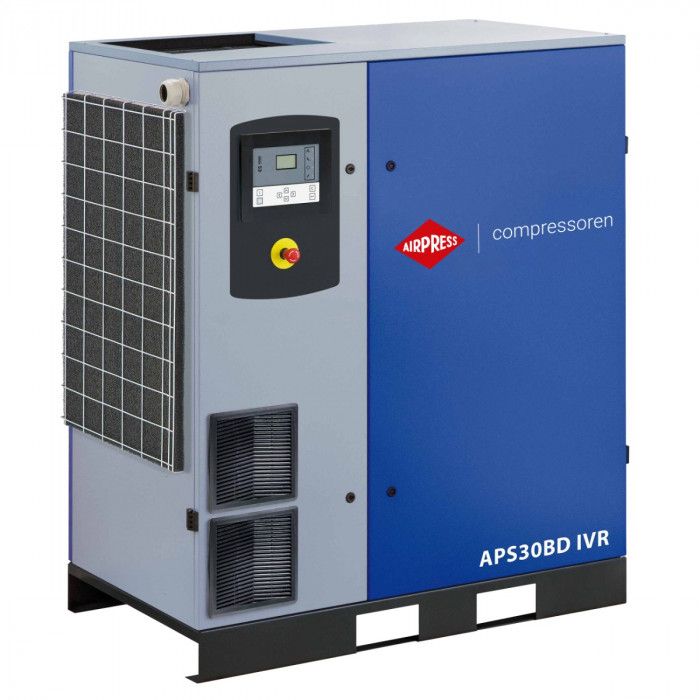

Screw Compressor APS 30BD IVR 13 bar 30 hp/22 kW 766-4167 l/min
Out of stock
SKU
36430-BD-IVR
| Motor power (hp / kW) | 30.0 HP / 22.0 kW |
|---|---|
| Variable speed (IVR) | Yes |
| Air Receiver | No |
| Dryer | No |
| Maximum pressure (bar) | 13 |
| Minimum free air delivery (l/min) | 766 L/min12.767 L/s |
| Minimum free air delivery (m3/h) | 45.96 m³/h12.767 dm³/s |
| Maximum free air delivery (l/min) | 4,167 L/min69.45 L/s |
| Maximum free air delivery (m3/h) | 250.02 m³/h4.167 m³/min |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418344660 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 503 kg |
| Length (mm) | 1,320 mm1.32 m |
| Width (mm) | 830 mm8.3 dm |
| Height (mm) | 1,555 mm1.555 m |
| Drive | Direct driven 1:1 |
| Start | Inverter |
| Motor type | PM |
| Motor power (hp / kW) | 30.0 HP / 22.0 kW |
| Motor efficiency class | IE3 |
| Air-end | C80 |
| Stages | 1 |
| Variable speed (IVR) | Yes |
| Minimum rpm 10 bar (rpm/Hz) | 5,262 rpm1.462 rpm/Hz |
| Maximum rpm 10 bar (rpm/Hz) | 7,768 rpm/Hz466.08 kHz |
| Control panel | ES 4000 STANDARD |
| Air Receiver | No |
| Galvanized tank | No |
| Dryer | No |
|---|---|
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 13 |
| Minimum working pressure (bar) | 5.5 bar |
| Minimum free air delivery (l/min) | 766 L/min12.767 L/s |
| Minimum free air delivery (m3/h) | 45.96 m³/h12.767 dm³/s |
| Maximum free air delivery (l/min) | 4,167 L/min69.45 L/s |
| Maximum free air delivery (m3/h) | 250.02 m³/h4.167 m³/min |
| Noise level dB (A) (0 m) | 69 |
| Noise level dB(A) (4 m) | 49 |
| Main air connection (") | 1 |
| Minimum ambient temperature (°C) | 4 |
| Maximum ambient temperature (°C) | 46 |
| Oilfree | No |
| Oil capacity (l) | 12.40 |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Power cable | 4 x 25 mm2 |
| SKU | 36430-BD-IVR |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
