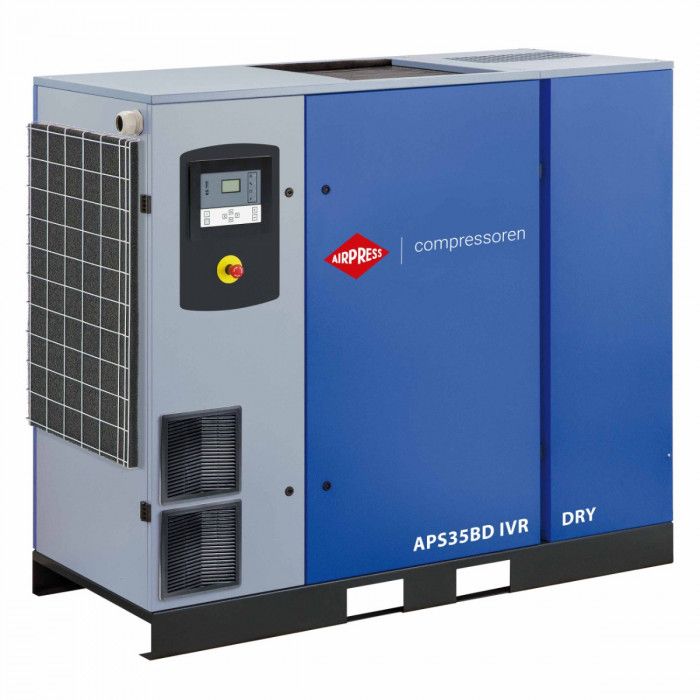

Screw Compressor APS 35BD IVR Dry 13 bar 35 hp/26 kW 767-4835 l/min
Out of stock
SKU
36435-BDX-IVR
| Motor power (hp / kW) | 35.0 HP / 26.0 kW |
|---|---|
| Variable speed (IVR) | Yes |
| Air Receiver | No |
| Dryer | Yes |
| Maximum pressure (bar) | 13 |
| Minimum free air delivery (l/min) | 767 L/min12.783 L/s |
| Minimum free air delivery (m3/h) | 46.02 m³/h12.783 dm³/s |
| Maximum free air delivery (l/min) | 4,835 L/min80.583 L/s |
| Maximum free air delivery (m3/h) | 290.1 m³/h4.835 m³/min |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418347289 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 514 kg |
| Length (mm) | 1,320 mm1.32 m |
| Width (mm) | 830 mm8.3 dm |
| Height (mm) | 1,555 mm1.555 m |
| Drive | Direct driven 1:1 |
| Start | Inverter |
| Motor type | PM |
| Motor power (hp / kW) | 35.0 HP / 26.0 kW |
| Motor efficiency class | IE3 |
| Air-end | C80 |
| Stages | 1 |
| Variable speed (IVR) | Yes |
| Minimum rpm 10 bar (rpm/Hz) | 5,262 rpm1.462 rpm/Hz |
| Maximum rpm 10 bar (rpm/Hz) | 7,768 rpm/Hz466.08 kHz |
| Control panel | ES 4000 STANDARD |
| Air Receiver | No |
| Galvanized tank | No |
| Dryer | Yes |
|---|---|
| Dryer voltage (V) | 230 |
| Cooling air volume (m3/h) | 4,800 m³/h1.333 m³/s |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 13 |
| Minimum working pressure (bar) | 5.5 bar |
| Minimum free air delivery (l/min) | 767 L/min12.783 L/s |
| Minimum free air delivery (m3/h) | 46.02 m³/h12.783 dm³/s |
| Maximum free air delivery (l/min) | 4,835 L/min80.583 L/s |
| Maximum free air delivery (m3/h) | 290.1 m³/h4.835 m³/min |
| Noise level dB (A) (0 m) | 68 |
| Noise level dB(A) (4 m) | 48 |
| Main air connection (") | 1 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Power cable | 4 x 25 mm2 |
| SKU | 36435-BDX-IVR |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
