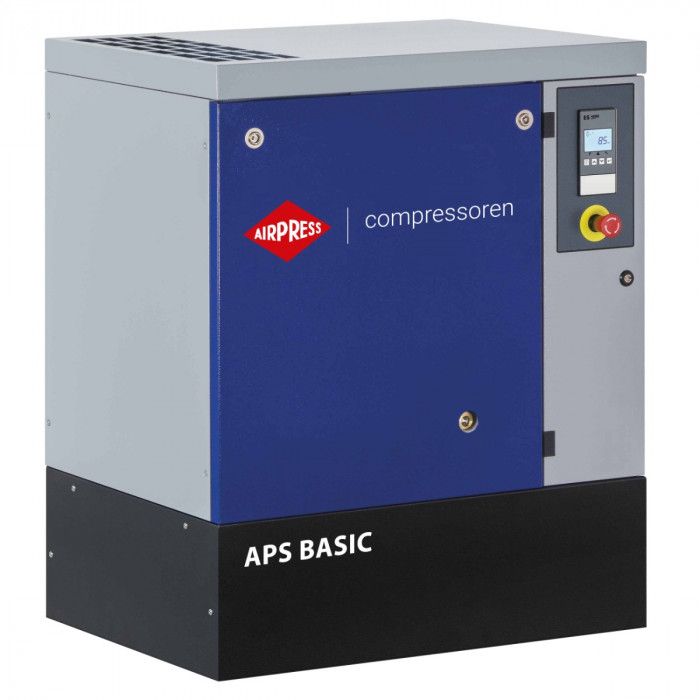

Screw Compressor APS 7.5 Basic 8 bar 7.5 hp 846 l/min
€18,290.00
Incl. Tax:
€18,290.00
Incl. Tax:
Incl. Tax:
Out of stock
SKU
364807-8
Product details
| SKU | 364807-8 |
|---|---|
| EAN 13 | 8712418366426 |
| Weight (netto) (kg) | 160 kg |
| Length (mm) | 620 mm6.2 dm |
| Width (mm) | 950 mm9.5 dm |
| Height (mm) | 605 mm6.05 dm |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 7.5 HP / 5.5 kW |
| Motor efficiency class | IE3 |
| Air-end | C55* |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ES 4000 BASIC |
|---|---|
| Air Receiver | No |
| Galvanized tank | No |
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 8 |
| Free air delivery (l/min) | 846 L/m1.41 L/h |
| Free air delivery (m3/h) | 50.76 m³/h2.35 L/m |
| Noise level dB (A) (0 m) | 64 |
| Noise level dB(A) (4 m) | 44 |
| Main air connection (") | 3/4 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
