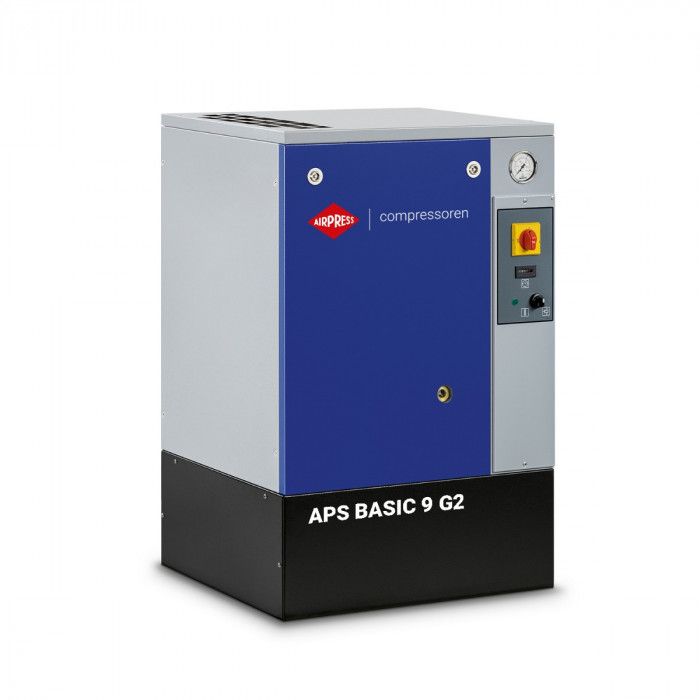

Screw Compressor APS 9 basic G2 10 bar 10 hp 984 l/min
€4.76
Incl. Tax:
€4.76
Incl. Tax:
Incl. Tax:
Out of stock
SKU
362809
Product details
| SKU | 362809 |
|---|---|
| EAN 13 | 8712418399929 |
| Weight (netto) (kg) | 140 kg |
| Length (mm) | 620 mm6.2 dm |
| Width (mm) | 665 mm6.65 dm |
| Height (mm) | 950 mm9.5 dm |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Motor efficiency class | IE3 |
| Air-end | C43 |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ON/OFF |
| Air Receiver | No |
| Galvanized tank | No |
|---|---|
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
| Free air delivery (l/min) | 984 L/m1.64 L/h |
| Free air delivery (m3/h) | 59.04 m³/h2.733 L/m |
| Noise level dB (A) (0 m) | 68 |
| Noise level dB(A) (4 m) | 48 |
| Main air connection (") | 3/4 |
| Oilfree | No |
| Oil capacity (l) | 3.20 |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Autoregulation of idling | Yes |
