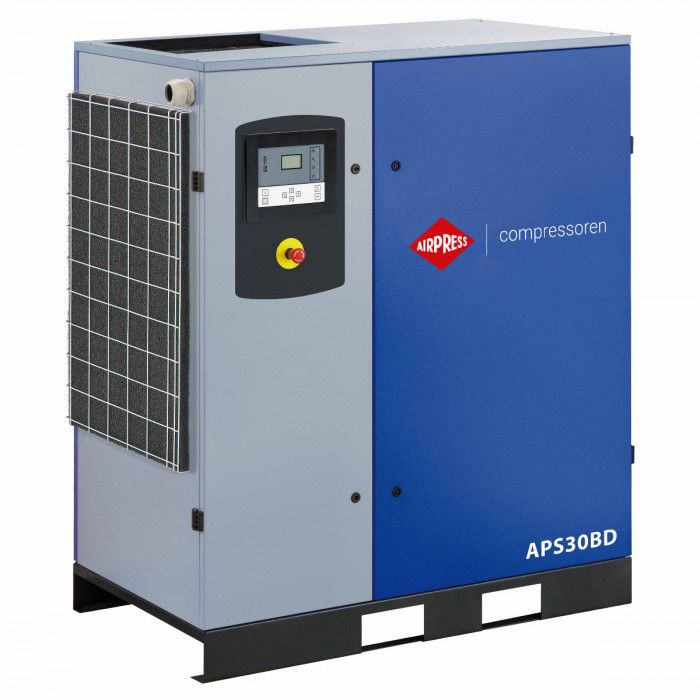

Screw Compressor APS30B Direct 8 bar 30 hp 3650 l/min
€13,806.00
Incl. Tax:
€13,806.00
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36430-BD-8
Product details
| SKU | 36430-BD-8 |
|---|---|
| EAN 13 | 8712418391350 |
| Weight (netto) (kg) | 430 kg |
| Length (mm) | 1,320 mm1.32 m |
| Width (mm) | 830 mm8.3 dm |
| Height (mm) | 1,550 mm1.55 m |
| Drive | Gearbox |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 30.0 HP / 22.0 kW |
| Motor efficiency class | IE3 |
| Air-end | C80 |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ES 4000 STANDARD |
| Air Receiver | No |
| Galvanized tank | No |
|---|---|
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 8 |
| Free air delivery (l/min) | 3,650 L/m6.083 L/h |
| Free air delivery (m3/h) | 219 m³/h3.65 m³/min |
| Noise level dB (A) (0 m) | 69 |
| Noise level dB(A) (4 m) | 49 |
| Main air connection (") | 1 |
| Minimum ambient temperature (°C) | 4 |
| Maximum ambient temperature (°C) | 46 |
| Oilfree | No |
| Oil capacity (l) | 12.40 |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
