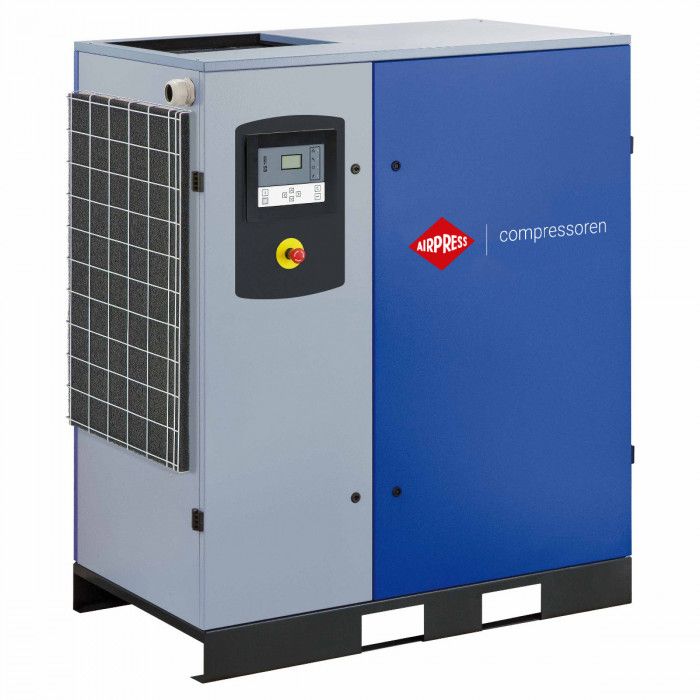

Screw Compressor APS35B Direct 7.5 bar 35 hp 4520 l/min
€14,160.00
Incl. Tax:
€14,160.00
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36435-BD-7.5
Product details
| SKU | 36435-BD-7.5 |
|---|---|
| EAN 13 | 8712418392661 |
| Weight (netto) (kg) | 433 kg |
| Length (mm) | 1,320 mm1.32 m |
| Width (mm) | 830 mm8.3 dm |
| Height (mm) | 1,555 mm1.555 m |
| Drive | Gearbox |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 35.0 HP / 26.0 kW |
| Motor efficiency class | IE3 |
| Air-end | C80 |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ES 4000 STANDARD |
| Air Receiver | No |
| Galvanized tank | No |
|---|---|
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 7.5 |
| Free air delivery (l/min) | 4,520 L/m7.533 L/h |
| Free air delivery (m3/h) | 271.2 m³/h4.52 m³/min |
| Noise level dB (A) (0 m) | 69 |
| Noise level dB(A) (4 m) | 49 |
| Main air connection (") | 1 |
| Minimum ambient temperature (°C) | 4 |
| Maximum ambient temperature (°C) | 46 |
| Oilfree | No |
| Oil capacity (l) | 12.40 |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Power cable | 4 x 25 mm2 |
