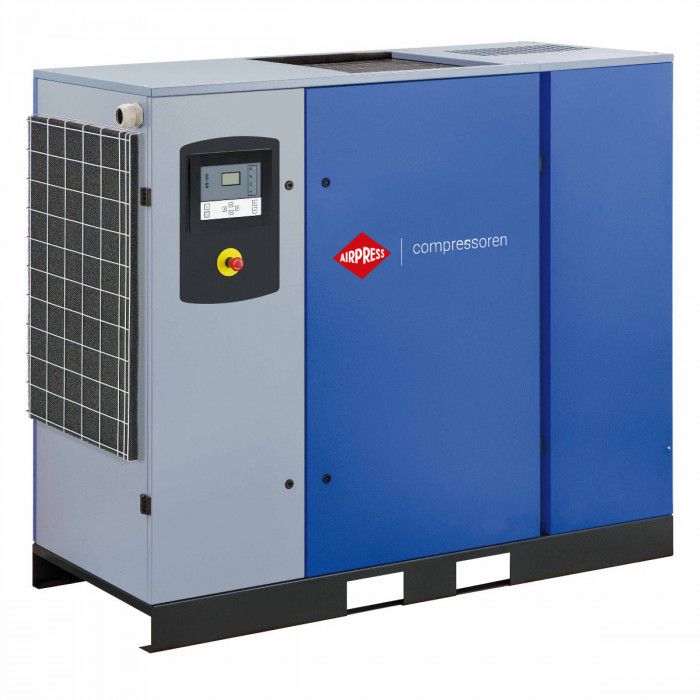

Screw Compressor APS40B Direct Dry 13 bar 40 hp 4000 l/min
€23,364.00
Incl. Tax:
€23,364.00
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36440-BDX-13
Product details
| SKU | 36440-BDX-13 |
|---|---|
| EAN 13 | 8712418391473 |
| Weight (netto) (kg) | 681 kg |
| Length (mm) | 1,320 mm1.32 m |
| Width (mm) | 830 mm8.3 dm |
| Height (mm) | 1,555 mm1.555 m |
| Drive | Gearbox |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 40.0 HP / 30.0 kW |
| Motor efficiency class | IE3 |
| Air-end | C80 |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ES 4000 STANDARD |
| Air Receiver | No |
| Galvanized tank | No |
|---|---|
| Dryer | Yes |
| Dryer voltage (V) | 230 |
| Cooling air volume (m3/h) | 4,800 m³/h1.333 kL/s |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 13 |
| Free air delivery (l/min) | 4,000 L/m6.667 L/h |
| Free air delivery (m3/h) | 240 m³/h4 m³/min |
| Noise level dB (A) (0 m) | 70 |
| Noise level dB(A) (4 m) | 50 |
| Main air connection (") | 1 1/4 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Power cable | 4 x 25 mm2 |
