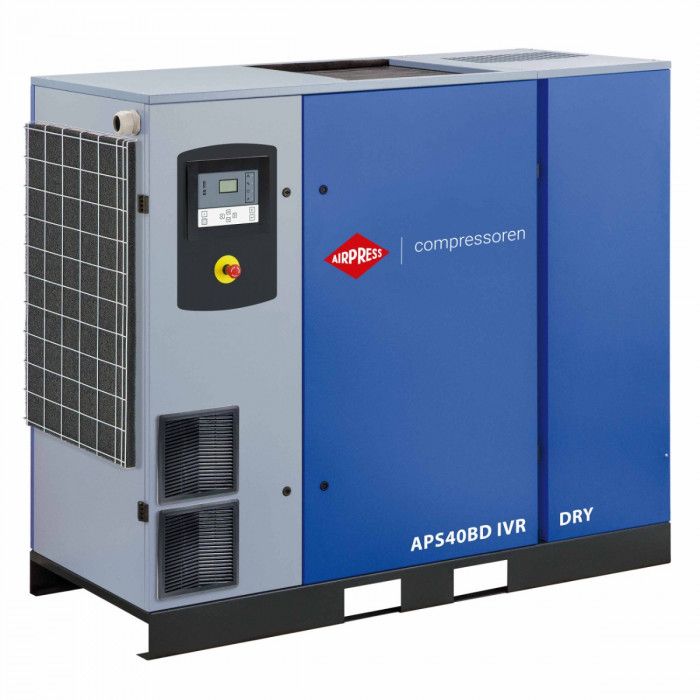

Screw Compressor APS40B DirectDry IVR 13 bar 40 hp 5800 l/min
€9,514,407.26
Incl. Tax:
€9,514,407.26
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36440-BDX-IVR
Product details
| SKU | 36440-BDX-IVR |
|---|---|
| EAN 13 | 8712418359824 |
| Weight (netto) (kg) | 607 kg |
| Length (mm) | 1,810 mm1.81 m |
| Width (mm) | 830 mm8.3 dm |
| Height (mm) | 1,555 mm1.555 m |
| Drive | Direct driven 1:1 |
| Start | Inverter |
| Motor type | PM |
| Motor power (hp / kW) | 40.0 HP / 30.0 kW |
| Motor efficiency class | IE3 |
| Air-end | C80 |
| Stages | 1 |
| Variable speed (IVR) | Yes |
| Minimum rpm 10 bar (rpm/Hz) | 5,262 rpm1.462 rpm/Hz |
| Maximum rpm 10 bar (rpm/Hz) | 7,768 rpm/Hz466.08 kHz |
| Control panel | ES 4000 STANDARD |
| Air Receiver | No |
| Galvanized tank | No |
|---|---|
| Dryer | Yes |
| Dryer voltage (V) | 230 |
| Cooling air volume (m3/h) | 4,800 m³/h1.333 kL/s |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 13 |
| Cut-in pressure (bar) | 5.5 bar |
| Minimum free air delivery (l/min) | 1,000 L/m1.667 L/h |
| Minimum free air delivery (m3/h) | 60 m³/h1 m³/min |
| Maximum free air delivery (l/min) | 5,800 L/m9.667 L/h |
| Maximum free air delivery (m3/h) | 348 m³/h5.8 m³/min |
| Noise level dB (A) (0 m) | 70 |
| Noise level dB(A) (4 m) | 50 |
| Main air connection (") | 1 1/4 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Power cable | 4 x 25 mm2 |
