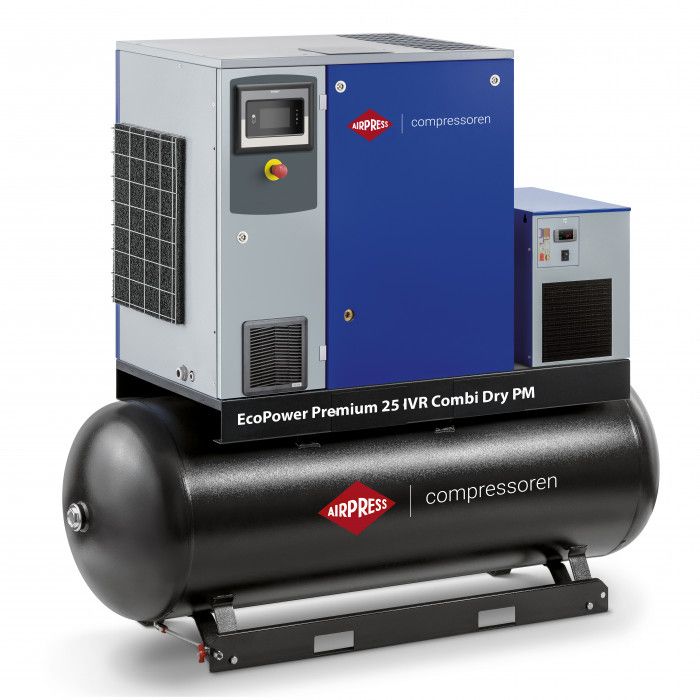

Screw compressor EcoPower Premium 25D IVR Combi Dry PM 13 bar 25 HP/18.5 kW 672 - 3503 l/min 500 l
€25,629.60
Incl. Tax:
€25,629.60
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36216-DD-PM
Product details
| SKU | 36216-DD-PM |
|---|---|
| EAN 13 | 8712418425888 |
| Units per product (pcs.) | 1 |
| Weight (netto) (kg) | 550 kg |
| Length (mm) | 1,940 mm1.94 m |
| Width (mm) | 835 mm8.35 dm |
| Height (mm) | 1,835 mm1.835 m |
| Drive | Direct driven 1:1 |
| Start | Inverter |
| Motor power (hp / kW) | 25.0 HP / 18.5 kW |
| Air-end | C67 |
| Variable speed (IVR) | Yes |
| Control panel | ES 4000 T TOUCHSCREEN |
| Air Receiver | Yes |
| Capacity air receiver (l) | 500 |
| Galvanized tank | No |
| Dryer | Yes |
| Workload (labor/rest %) | 100/0 |
|---|---|
| Maximum pressure (bar) | 13 |
| Working pressure (bar) | 4 - 12.5 |
| Free air delivery at 7 bar (l/min) | 3,504 L/m5.84 L/h |
| Free air delivery at 9.5 bar (l/min) | 3,024 L/m5.04 L/h |
| Minimum free air delivery (l/min) | 672 L/m1.12 L/h |
| Minimum free air delivery (m3/h) | 40.3 m³/h1.866 L/m |
| Maximum free air delivery (l/min) | 3,504 L/m5.84 L/h |
| Maximum free air delivery (m3/h) | 210.2 m³/h3.503 m³/min |
| Noise level dB (A) (0 m) | 70 |
| Noise level dB(A) (4 m) | 50 |
| Maximum ambient temperature (°C) | 46 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP54 |
