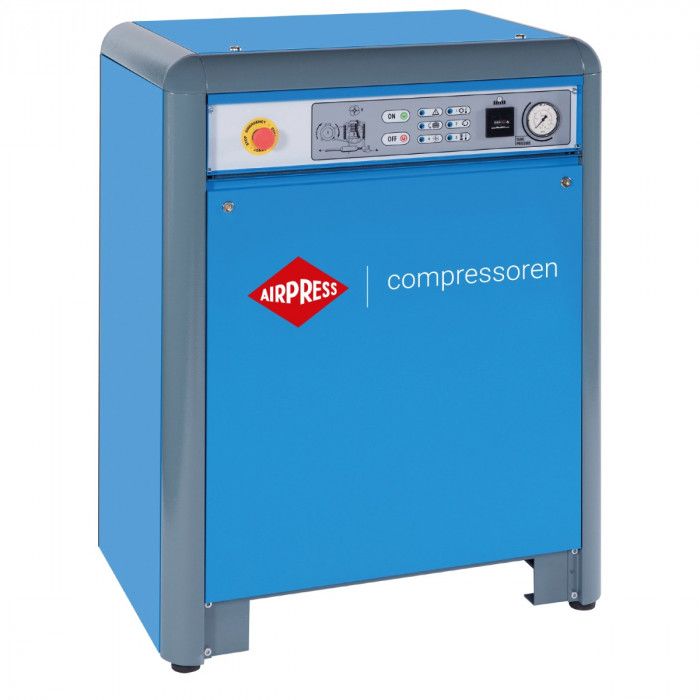

Silent Compressor APZ 500+ 11 bar 4 hp 379 l/min 3 l
Out of stock
SKU
34250-S
| Motor power (hp / kW) | 4.0 HP / 3.0 kW |
|---|---|
| Capacity air receiver (l) | 3 (internal / expansion) |
| Maximum pressure (bar) | 11 |
| Intake capacity (l/min) | 495 L/min8.25 L/s |
| Free air delivery (l/min)* | 379 L/min6.317 L/s |
| Noise level dB (A) (0 m) | 65 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418309225 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 147 kg |
| Length (mm) | 870 mm8.7 dm |
| Width (mm) | 640 mm6.4 dm |
| Height (mm) | 1,120 mm1.12 m |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor power (hp / kW) | 4.0 HP / 3.0 kW |
| Pump Type | K25 |
| Cylinders | 2 |
| Stages | 2 |
| Pump speed (rpm) | 1200 |
| Belt size | A60 (1525) |
| Flywheel diameter (mm) | 385 mm3.85 dm |
| Pulley diameter (mm) | 150 mm1.5 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 3 (internal / expansion) |
| Galvanized tank | No |
| Workload (labor/rest %) | 60/40 |
|---|---|
| Maximum pressure (bar) | 11 |
| Minimum working pressure (bar) | 9 bar |
| Intake capacity (l/min) | 495 L/min8.25 L/s |
| Free air delivery (l/min)* | 379 L/min6.317 L/s |
| Free air delivery (m3/h)* | 22.74 m³/h6.317 dm³/s |
| Noise level dB (A) (0 m) | 65 |
| Noise level dB(A) (4 m) | 45 |
| Noise level dB(A) (7 m) | 40 |
| Sound volume reduction | Yes |
| Main air connection (") | 3/4 |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | Yes |
| Wheels | No |
| Filter with reducer | No |
| SKU | 34250-S |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
