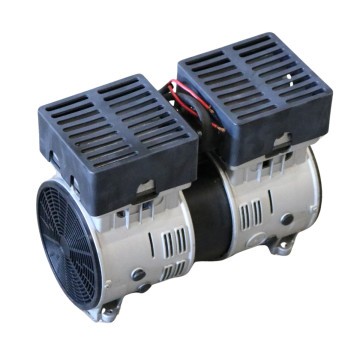

Silent oil free air compressor L 6-105 8 bar 0.6 hp 48 l/min 6 l
Out of stock
SKU
36738
Product details
| SKU | 36738 |
|---|---|
| EAN 13 | 08712418298215 |
| Weight (netto) (kg) | 13.8 kg |
| Length (mm) | 465 mm4.65 dm |
| Width (mm) | 170 mm1.7 dm |
| Height (mm) | 490 mm4.9 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 0.6 HP / 0.45 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 1440 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 6 |
| Galvanized tank | No |
| Workload (labor/rest %) | 20/80 |
| Maximum pressure (bar) | 8 |
| Cut-in pressure (bar) | 6 bar |
| Intake capacity (l/min) | 90 L/m32.4 m³/min |
|---|---|
| Free air delivery (l/min) | 48 L/m17.28 m³/min |
| Free air delivery (m3/h) | 2.88 m³/h |
| Noise level dB (A) (0 m) | 66 |
| Noise level dB(A) (4 m) | 46 |
| Noise level dB(A) (7 m) | 41 |
| Sound volume reduction | Yes |
| Connection type | Universal |
| Main air connection (") | 1/4 |
| Number of couplings air connections | 1 |
| Number of reducable couplings air connections | 1 |
| Oilfree | Yes |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | No |
| Filter with reducer | No |
