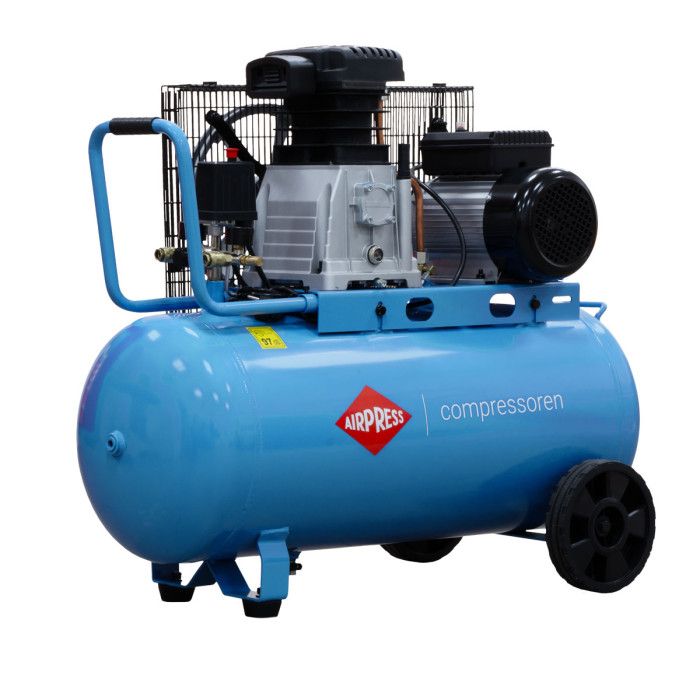

Compressor HL 340-90 10 bar 3 hp 272 l/min 90 l
€469.64
Incl. Tax:
€469.64
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36844-E
Product details
| SKU | 36844-E |
|---|---|
| EAN 13 | 8712418169546 |
| Weight (netto) (kg) | 63 kg |
| Gross weight (kg) | 76.5 kg |
| Length (mm) | 1,230 mm1.23 m |
| Width (mm) | 440 mm4.4 dm |
| Height (mm) | 740 mm7.4 dm |
| Drive | V-belt driven |
| Start | Direct |
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 1400 |
| Belt size | A1194 |
| Flywheel diameter (mm) | 300 mm3 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 90 |
| Galvanized tank | No |
| Workload (labor/rest %) | 30/70 |
| Maximum pressure (bar) | 10 |
|---|---|
| Cut-in pressure (bar) | 8 bar |
| Intake capacity (l/min) | 340 L/m2.04 kL/s |
| Free air delivery (l/min) | 272 L/m1.632 kL/s |
| Free air delivery (m3/h) | 16.32 m³/h4.533 dm³/s |
| Noise level dB (A) (0 m) | 97 |
| Noise level dB(A) (4 m) | 77 |
| Noise level dB(A) (7 m) | 72 |
| Sound volume reduction | No |
| Connection type | 2 Universal |
| Main air connection (") | 1/4 |
| Number of reducable couplings air connections | 1 |
| Oilfree | No |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | Yes |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
Recommended
Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Press to skip carousel
Documents & Manuals
Download PDF
Spare parts list 36844-E
Manual EN/FR/NL/DE/PL/ES/UA/CZ/LT/LV/EE/RO/SK/HU 36546, 36744-E, 36839-1, 36856, 36832, 36852, 36833, 36843, 36888, 36834, 36826, 36827, 36828, 36844-E, 36891, 36871, 36872
13.12.2024 - BLUE SERIES PISTON COMPRESSORS OIL LUBRICATED_2024 - WEB.pdf
36844-E - SPARE PARTS LIST 2024.pdf
