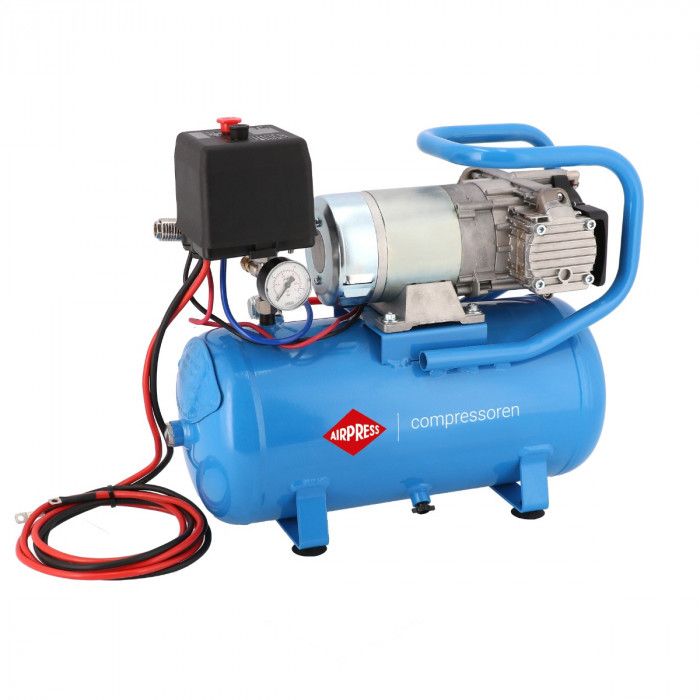

Silent Oil free Compressor 12 V DC 12-180/15 10 bar 0.75 hp 144 l/min 15 l
€1,174.10
Incl. Tax:
€1,174.10
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36587
Product details
| SKU | 36587 |
|---|---|
| EAN 13 | 8712418273519 |
| Weight (netto) (kg) | 19.5 kg |
| Length (mm) | 500 mm5 dm |
| Width (mm) | 220 mm2.2 dm |
| Height (mm) | 380 mm3.8 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 0.75 HP / 0.55 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 2400 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 15 |
| Galvanized tank | No |
| Workload (labor/rest %) | 20/80 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
|---|---|
| Intake capacity (l/min) | 180 L/m1.08 kL/s |
| Free air delivery (l/min) | 144 L/m51.84 m³/min |
| Free air delivery (m3/h) | 8.64 m³/h2.4 dm³/s |
| Noise level dB (A) (0 m) | 60 |
| Noise level dB(A) (4 m) | 40 |
| Noise level dB(A) (7 m) | 35 |
| Sound volume reduction | Yes |
| Connection type | Universal |
| Main air connection (") | 1/4 |
| Number of reducable couplings air connections | 1 |
| Oilfree | Yes |
| Voltage (V) | 12 V |
| After cooler | No |
| Intercooler | No |
| Wheels | No |
| Filter with reducer | No |
