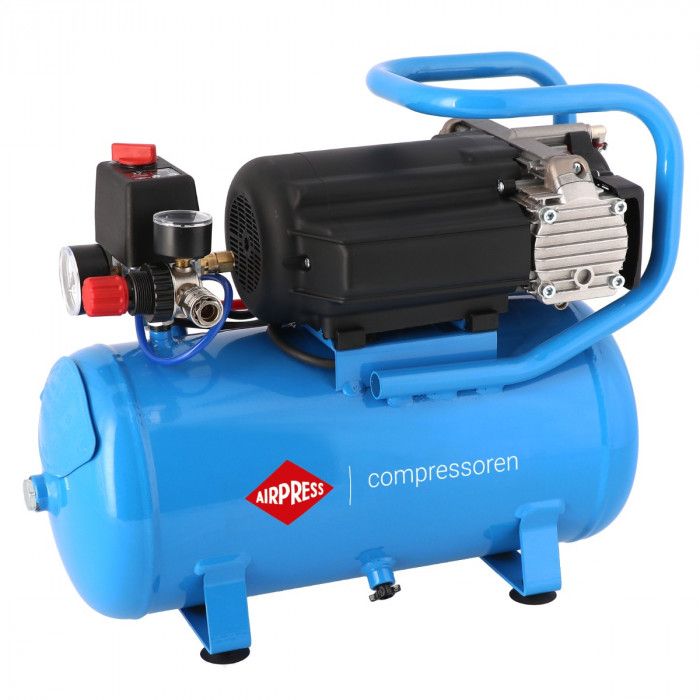

Silent oil free Compressor LMO 15-210 10 bar 0.75 hp 125 l/min 15 l
€693.99
Incl. Tax:
€693.99
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36750
Product details
| SKU | 36750 |
|---|---|
| EAN 13 | 8712418257410 |
| Weight (netto) (kg) | 17.5 kg |
| Length (mm) | 480 mm4.8 dm |
| Width (mm) | 220 mm2.2 dm |
| Height (mm) | 400 mm4 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 0.75 HP / 0.55 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 2800 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 15 |
| Galvanized tank | No |
| Workload (labor/rest %) | 20/80 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
|---|---|
| Intake capacity (l/min) | 210 L/m1.26 kL/s |
| Free air delivery (l/min) | 125 L/m45 m³/min |
| Free air delivery (m3/h) | 7.5 m³/h2.083 dm³/s |
| Noise level dB (A) (0 m) | 74 |
| Noise level dB(A) (4 m) | 54 |
| Noise level dB(A) (7 m) | 49 |
| Sound volume reduction | Yes |
| Connection type | Universal |
| Main air connection (") | 1/4 |
| Number of reducable couplings air connections | 1 |
| Oilfree | Yes |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | No |
| Filter with reducer | No |
