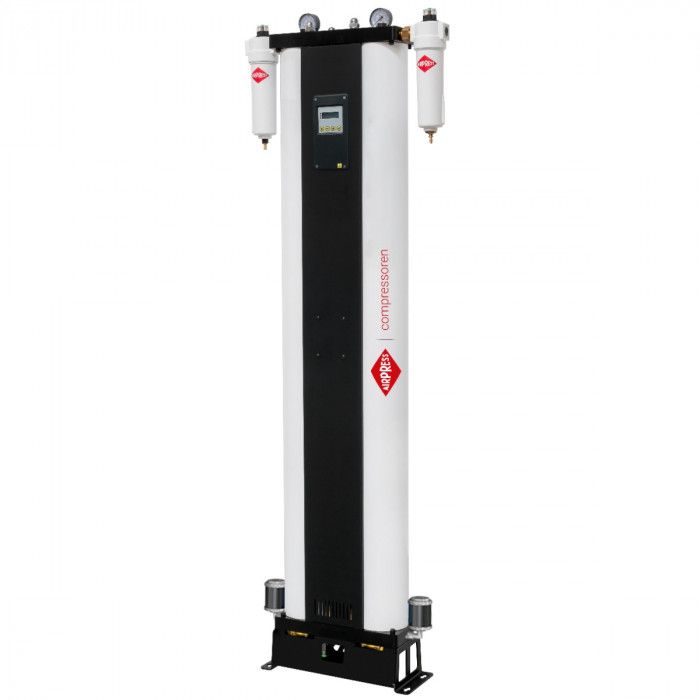

Adsorption Dryer ADS 75 1250 l/min
Out of stock
SKU
39075
| Connection size (") | 3/4 |
|---|---|
| Pressure dew points (°C) | -40 (-25 / -70) |
| Nominal value flow inlet (Nm3/h) | 75 m³/h1.25 m³/min |
| Nominal value flow inlet (l/min) | 1,250 L/min20.833 L/s |
| Power consumption (W) | <40 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| EAN 13 | 8712418367133 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 53 kg |
| Connection size (") | 3/4 |
| Pressure dew points (°C) | -40 (-25 / -70) |
| Working pressure (bar) | 4 - 16 |
| Nominal value flow inlet (Nm3/h) | 75 m³/h1.25 m³/min |
| Nominal value flow inlet (l/min) | 1,250 L/min20.833 L/s |
| Nominal value flow outlet (Nm3/h) | 59.3 m³/h16.472 dm³/s |
| Nominal value flow outlet (l/min) | 988 L/min16.467 L/s |
| Consumption for regeneration (l/min) | 262 L/min4.367 L/s |
| Power consumption (W) | <40 |
|---|---|
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| IP classification | IP65 |
| Prefilter (type) | S filter - 0.01 µm |
| Postfilter (type) | R filter - 1 µm |
| Residual oil content (mg/m3) | <0.01 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 45 |
| Noise level dB (A) (0 m) | <100 |
| Distance sensor | No |
| SKU | 39075 |
