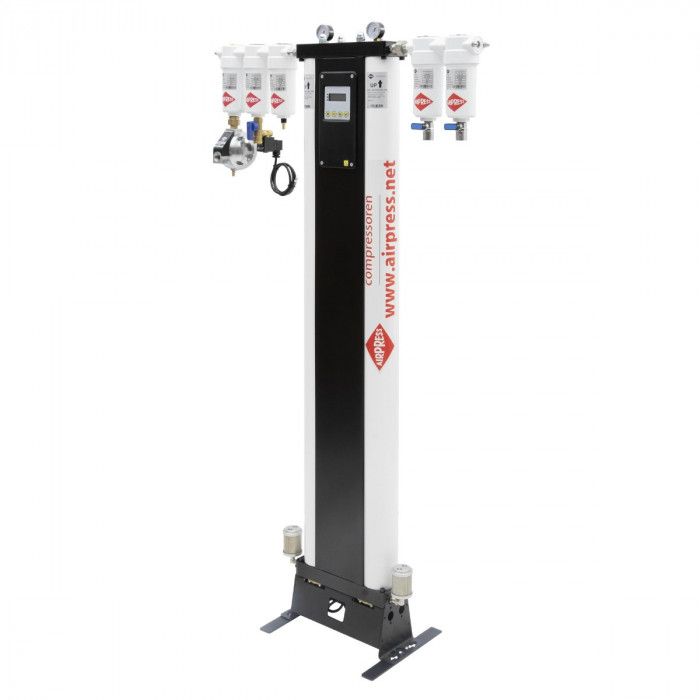

Adsorption Dryer set ISO OFAG 600 l/min Class Zero
€2,977.73
Incl. Tax:
€2,977.73
Incl. Tax:
Incl. Tax:
Out of stock
SKU
60036-OFAG3
Product details
| SKU | 60036-OFAG3 |
|---|---|
| EAN 13 | 8712418395112 |
| Weight (netto) (kg) | 27.5 kg |
| Length (mm) | 480 mm4.8 dm |
| Width (mm) | 130 mm1.3 dm |
| Height (mm) | 1,500 mm1.5 m |
| Connection size (") | 3/8, 1/2 |
| Pressure dew points (°C) | -20 / -25 |
| Working pressure (bar) | 4 - 16 |
| Nominal value flow inlet (Nm3/h) | 36 m³/h1.667 L/m |
| Nominal value flow inlet (l/min) | 600 L/m1 L/h |
| Nominal value flow outlet (Nm3/h) | 36 m³/h1.667 L/m |
| Nominal value flow outlet (l/min) | 600 L/m1 L/h |
| Consumption for regeneration (l/min) | 81.83 L/m29.459 m³/min |
|---|---|
| Power consumption (W) | <40 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| IP classification | IP65 |
| Prefilter (type) | P filter - 3 µm, Cyclone filter, S filter - 0.01 µm |
| Postfilter (type) | A2 - 0.005 mg/m3, R filter - 1 µm |
| Residual oil content (mg/m3) | <0.005 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 60 |
| Noise level dB (A) (0 m) | <100 |
| Distance sensor | No |
| ISO | ISO8573-1, ISO8573-1:1.3.1 / 0 |
