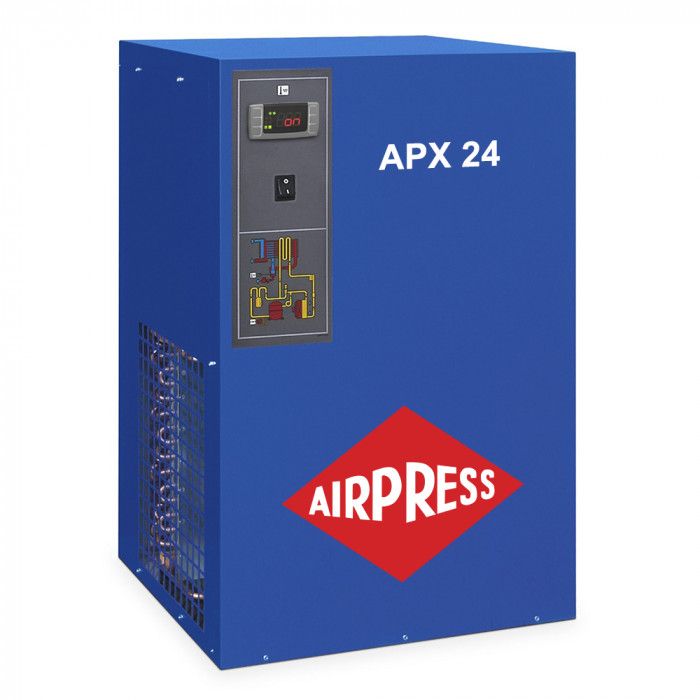

Compressed air dryer APX 24 1" 2350 l/min
Out of stock
SKU
390024
| Air flow at 7 bar (l/min) | 2350 |
|---|---|
| Air flow at 7 bar (m3/h) | 141 m³/h2.35 m³/min |
| Purity class - humidity (ISO 8573-1) | 4 |
| Air connection (") | 1 |
| Power (kW) | 0.674 |
| Maximum pressure (bar) | 14 |
| Pressure dew points (°C) | 4 (+/-1) |
| EAN 13 | 8712418362732 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 44 kg |
| Length (mm) | 370 mm3.7 dm |
| Width (mm) | 497 mm4.97 dm |
| Height (mm) | 764 mm7.64 dm |
| Type | APX |
| Control panel | Digital |
| Air flow at 7 bar (l/min) | 2350 |
| Air flow at 7 bar (m3/h) | 141 m³/h2.35 m³/min |
| Purity class - humidity (ISO 8573-1) | 4 |
| Connection type | Female |
|---|---|
| Air connection (") | 1 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| Power (kW) | 0.674 |
| Refrigerant | R513A |
| Maximum pressure (bar) | 14 |
| Pressure dew points (°C) | 4 (+/-1) |
| Max. inlet air temperature (°C) | 55 °C |
| Minimum ambient temperature (°C) | 5 |
| Maximum ambient temperature (°C) | 43 |
| SKU | 390024 |
