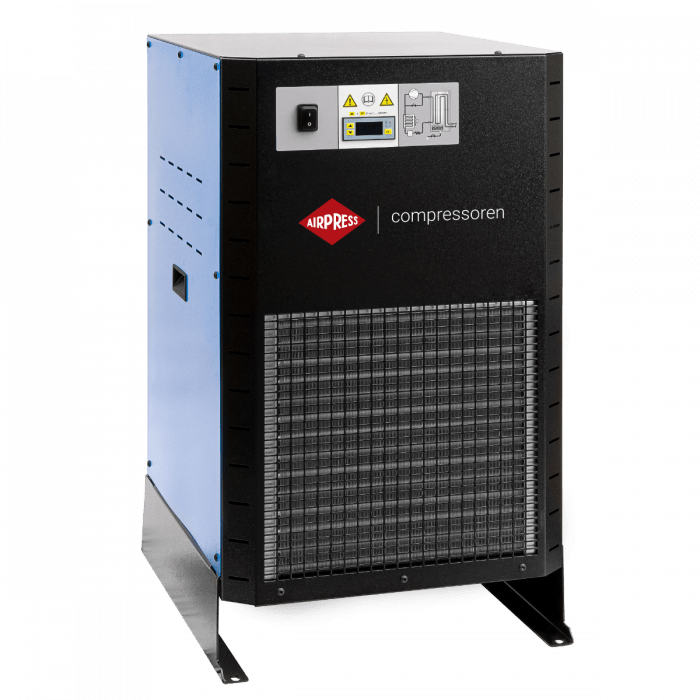

Compressed air dryer RDO 950 2" 15830 l/min "Timer" automatic condensation drain
Out of stock
SKU
3900950
| Air flow at 7 bar (l/min) | 15830 |
|---|---|
| Air flow at 7 bar (m3/h) | 950 m³/h15.833 m³/min |
| Purity class - humidity (ISO 8573-1) | 4 |
| Air connection (") | 2 |
| Power (kW) | 2.4 |
| Maximum pressure (bar) | 16 |
| Pressure dew points (°C) | 3 |
| EAN 13 | 8712418405132 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 150 kg |
| Length (mm) | 491 mm4.91 dm |
| Width (mm) | 708 mm7.08 dm |
| Height (mm) | 973 mm9.73 dm |
| Type | RDO |
| Control panel | Digital |
| Type condensation drain | Automatic "Timer" |
| Air flow (m3/h) | 950 |
| Air flow at 7 bar (l/min) | 15830 |
| Air flow at 7 bar (m3/h) | 950 m³/h15.833 m³/min |
| Purity class - humidity (ISO 8573-1) | 4 |
| Connection type | Female |
| Air connection (") | 2 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
|---|---|
| Power (kW) | 2.4 |
| IP classification | IP 65 |
| Cooling air volume (m3/h) | 2,200 m³/h36.667 m³/min |
| Refrigerant | R513A |
| Refrigerant weight (kg) | 2.55 |
| Maximum pressure (bar) | 16 |
| Pressure dew points (°C) | 3 |
| Max. inlet air temperature (°C) | 55 °C |
| Minimum ambient temperature (°C) | 1 |
| Maximum ambient temperature (°C) | 45 |
| Heat rejection (kW) | 7.7 |
| Noise level dB (A) (0 m) | >65 |
| SKU | 3900950 |
