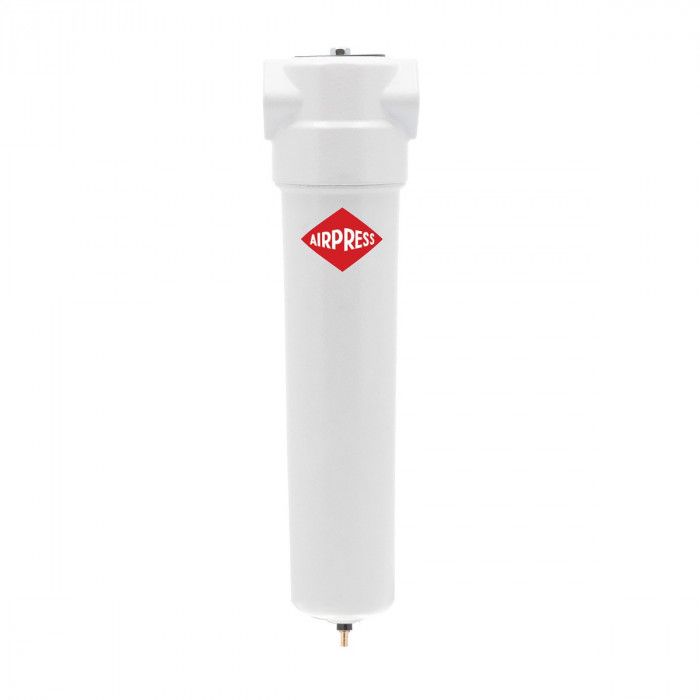

Compressed air filter M 1 1/2" F070 13000 l/min microfilter 0.1 micrometer <0.1 mg/m3
€472.00
Incl. Tax:
€472.00
Incl. Tax:
Incl. Tax:
Out of stock
SKU
450170A-M
Product details
| SKU | 450170A-M |
|---|---|
| EAN 13 | 8712418398373 |
| Weight (netto) (kg) | 2.6 kg |
| Width (mm) | 125 mm1.25 dm |
| Height (mm) | 641 mm6.41 dm |
| Diameter (mm) | 125 |
| Series | M |
| Housing material | Aluminium |
| Element material | Borosilicate micro fibres |
| Filter type | Microfilter |
| Type condensation drain | Automatic |
| Replaceable cartridge | Yes |
| Distance sensor | No |
|---|---|
| Pressure reducer | No |
| Filtration (µm) | 0.1 |
| Residual oil content (mg/m3) | <0.1 |
| Air connection (") | 1 1/2 |
| Working pressure (bar) | 0 - 16 |
| Maximum pressure (bar) | 16 |
| Flow rate (l/min) | 13000 |
| Flow rate (m3/h) | 780 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 65 |
