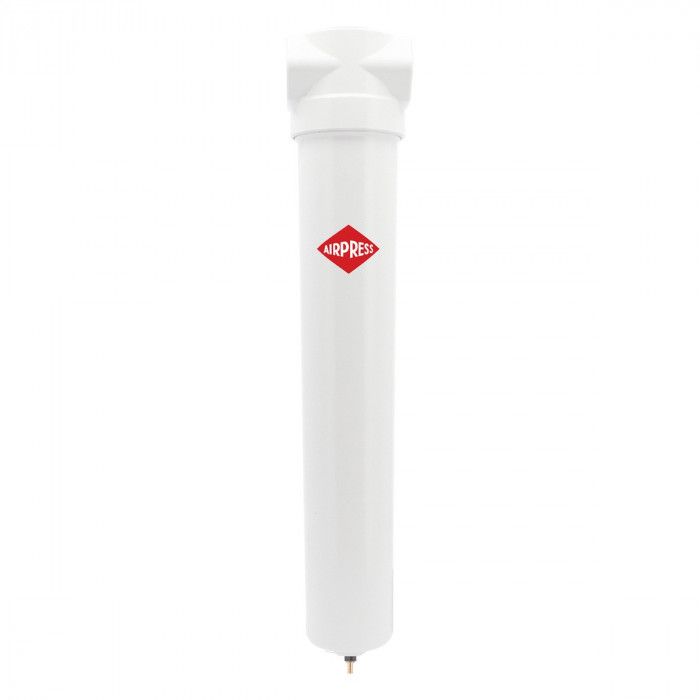

Compressed air filter M 2 1/2" F175 28000 l/min microfilter 0.1 micrometer <0.1 mg/m3
Out of stock
SKU
450200-M
| Filter type | Microfilter |
|---|---|
| Filtration (µm) | 0.1 |
| Flow rate (l/min) | 28000 |
| Flow rate (m3/h) | 1680 |
| EAN 13 | 8712418411867 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 7.3 kg |
| Width (mm) | 164 mm1.64 dm |
| Height (mm) | 943 mm9.43 dm |
| Diameter (mm) | 164 |
| Series | M |
| Housing material | Aluminium |
| Element material | Borosilicate micro fibres |
| Filter type | Microfilter |
| Type condensation drain | Automatic |
| Replaceable cartridge | Yes |
| Distance sensor | No |
|---|---|
| Pressure reducer | No |
| Filtration (µm) | 0.1 |
| Residual oil content (mg/m3) | <0.1 |
| Air connection (") | 2 1/2 |
| Working pressure (bar) | 0 - 16 |
| Maximum pressure (bar) | 16 |
| Flow rate (l/min) | 28000 |
| Flow rate (m3/h) | 1680 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 65 |
| SKU | 450200-M |
