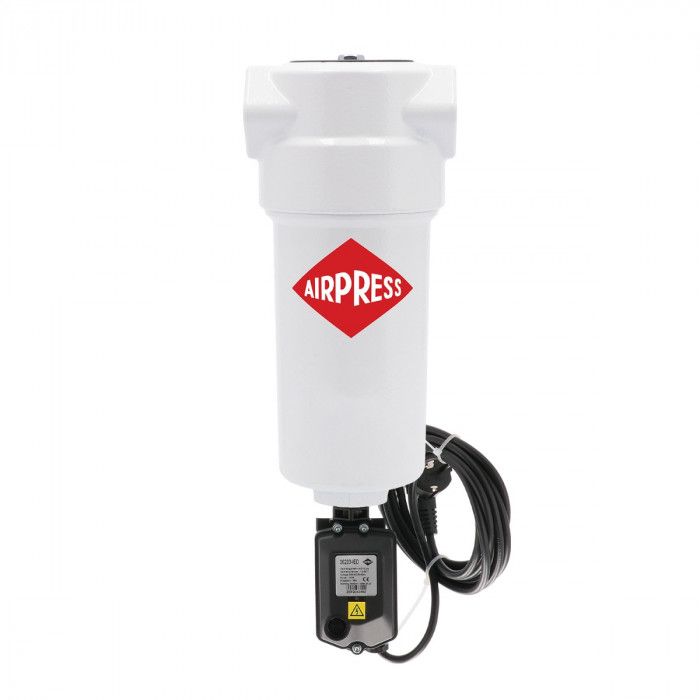

Compressed air filter P 3/8" F005 1000 l/min prefilter 3 micrometer
€265.50
Incl. Tax:
€265.50
Incl. Tax:
Incl. Tax:
Out of stock
SKU
450110A-P
Product details
| SKU | 450110A-P |
|---|---|
| EAN 13 | 8712418395679 |
| Weight (netto) (kg) | 0.6 kg600 g |
| Width (mm) | 88 mm8.8 cm |
| Height (mm) | 189 mm1.89 dm |
| Diameter (mm) | 88 |
| Series | P |
| Housing material | Aluminium |
| Element material | Acrylic fibers, cellulose |
| Filter type | Prefilter |
| Type condensation drain | Automatic |
| Replaceable cartridge | Yes |
| Distance sensor | No |
|---|---|
| Pressure reducer | No |
| Filtration (µm) | 3 |
| Air connection (") | 3/8 |
| Working pressure (bar) | 0 - 16 |
| Maximum pressure (bar) | 16 |
| Flow rate (l/min) | 1000 |
| Flow rate (m3/h) | 60 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 65 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| Cable length (m) | 2.9 m |
