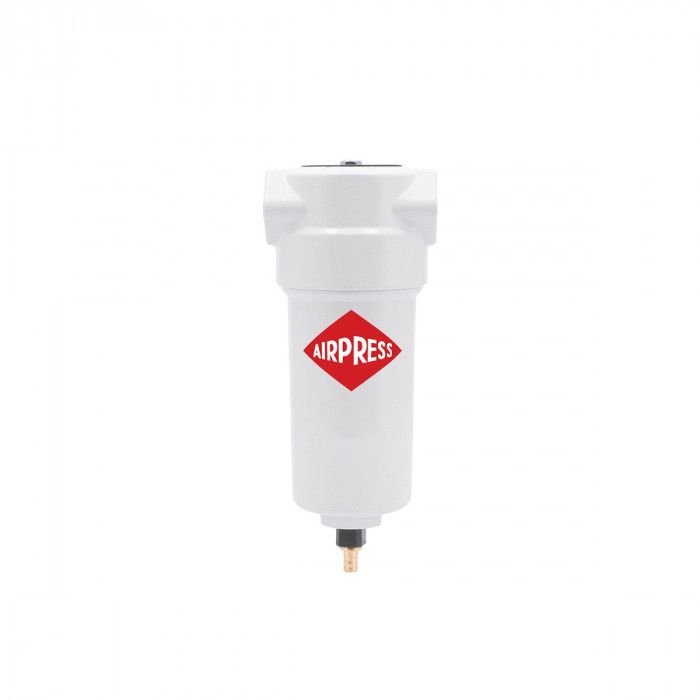

Compressed air filter R 1" F018 3300 l/min prefilter 1 micrometer
€295.32
Incl. Tax:
€295.32
Incl. Tax:
Incl. Tax:
Out of stock
SKU
450140A-R
Product details
| SKU | 450140A-R |
|---|---|
| EAN 13 | 8712418404401 |
| Weight (netto) (kg) | 1.2 kg |
| Width (mm) | 125 mm1.25 dm |
| Height (mm) | 261 mm2.61 dm |
| Diameter (mm) | 125 |
| Series | R |
| Housing material | Aluminium |
| Element material | Borosilicate micro fibres |
| Filter type | Prefilter |
| Type condensation drain | Automatic |
| Replaceable cartridge | Yes |
|---|---|
| Distance sensor | No |
| Pressure reducer | No |
| Filtration (µm) | 1 |
| Air connection (") | 1 |
| Working pressure (bar) | 0 - 16 |
| Maximum pressure (bar) | 16 |
| Flow rate (l/min) | 3300 |
| Flow rate (m3/h) | 198 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 65 |
