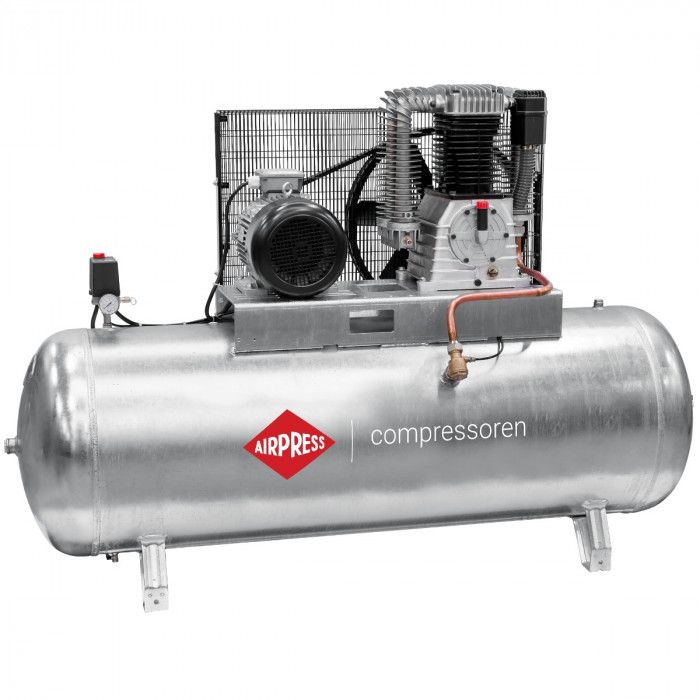

Compressor G 1500-500 Pro 11 bar 10 hp 859 l/min 500 l galvanized
Out of stock
SKU
369673
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
|---|---|
| Capacity air receiver (l) | 500 |
| Maximum pressure (bar) | 11 |
| Intake capacity (l/min) | 1,074 L/min17.9 L/s |
| Free air delivery (l/min)* | 751.8 L/min12.53 L/s |
| Noise level dB (A) (0 m) | 76 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418332551 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 263 kg |
| Length (mm) | 1,930 mm1.93 m |
| Width (mm) | 630 mm6.3 dm |
| Height (mm) | 1,370 mm1.37 m |
| Drive | V-belt driven |
| Start | Direct |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Pump Type | K50 |
| Cylinders | 2 |
| Stages | 2 |
| Pump speed (rpm) | 1000 |
| Belt size | SPB 2180 |
| Flywheel diameter (mm) | 550 mm5.5 dm |
| Pulley diameter (mm) | 180 mm1.8 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 500 |
| Galvanized tank | Yes |
| Workload (labor/rest %) | 50/50 |
| Maximum pressure (bar) | 11 |
|---|---|
| Minimum working pressure (bar) | 9 bar |
| Intake capacity (l/min) | 1,074 L/min17.9 L/s |
| Free air delivery (l/min)* | 751.8 L/min12.53 L/s |
| Free air delivery (m3/h)* | 44.82 m³/h12.45 dm³/s |
| Noise level dB (A) (0 m) | 76 |
| Noise level dB(A) (4 m) | 56 |
| Noise level dB(A) (7 m) | 51 |
| Sound volume reduction | No |
| Connection type | Euro |
| Main air connection (") | 1/2 |
| Number of reducable couplings air connections | - |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | Yes |
| Wheels | No |
| Filter with reducer | No |
| SKU | 369673 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
