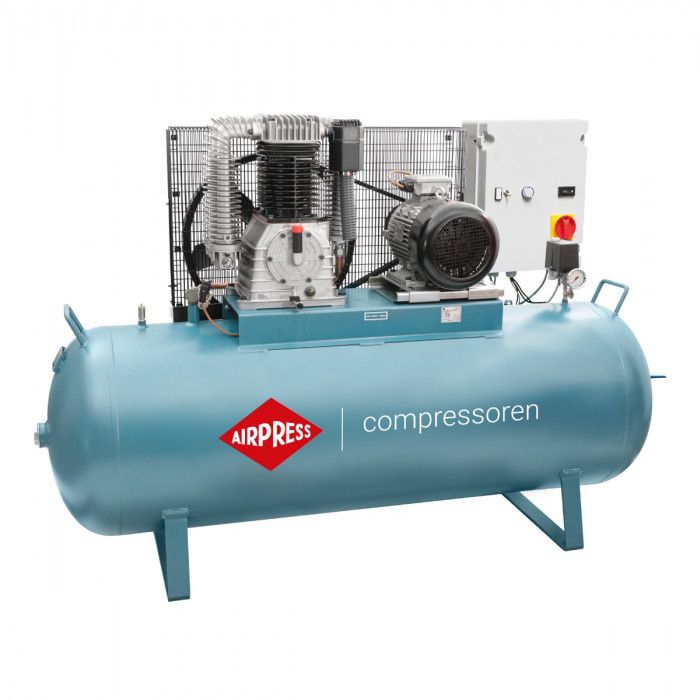

Compressor K 500-1500S 14 bar 10 hp 750 l/min 500 l
Out of stock
SKU
36523-N
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
|---|---|
| Capacity air receiver (l) | 500 |
| Maximum pressure (bar) | 14 |
| Intake capacity (l/min) | 1,500 L/min25 L/s |
| Free air delivery (l/min)* | 644 L/min10.733 L/s |
| Noise level dB (A) (0 m) | 99 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418305418 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 325 kg |
| Length (mm) | 1,930 mm1.93 m |
| Width (mm) | 640 mm6.4 dm |
| Height (mm) | 1,350 mm1.35 m |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Pump Type | K50 |
| Cylinders | 2 |
| Stages | 2 |
| Pump speed (rpm) | 850 |
| Belt size | SPB 2120 |
| Flywheel diameter (mm) | 550 mm5.5 dm |
| Pulley diameter (mm) | 160 mm1.6 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 500 |
| Galvanized tank | No |
| Workload (labor/rest %) | 60/40 |
|---|---|
| Maximum pressure (bar) | 14 |
| Minimum working pressure (bar) | 12 bar1.2 MPa |
| Intake capacity (l/min) | 1,500 L/min25 L/s |
| Free air delivery (l/min)* | 644 L/min10.733 L/s |
| Free air delivery (m3/h)* | 38.64 m³/h10.733 dm³/s |
| Noise level dB (A) (0 m) | 99 |
| Noise level dB(A) (4 m) | 79 |
| Noise level dB(A) (7 m) | 74 |
| Sound volume reduction | No |
| Main air connection (") | 1/2 |
| Number of reducable couplings air connections | - |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | Yes |
| Wheels | No |
| Filter with reducer | No |
| SKU | 36523-N |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
