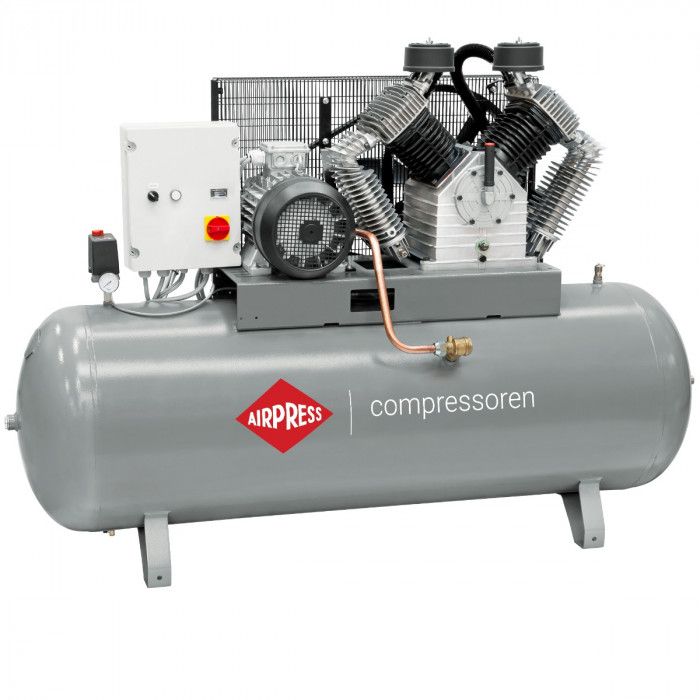

Compressor HK 2000-500 SD 11 bar 15 hp 1395 l/min 500 l star delta switch
€5,957.82
Incl. Tax:
€5,957.82
Incl. Tax:
Incl. Tax:
Out of stock
SKU
360675
Product details
| SKU | 360675 |
|---|---|
| EAN 13 | 8712418334197 |
| Weight (netto) (kg) | 364 kg |
| Length (mm) | 1,930 mm1.93 m |
| Width (mm) | 640 mm6.4 dm |
| Height (mm) | 1,410 mm1.41 m |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor power (hp / kW) | 15.0 HP / 11.0 kW |
| Pump Type | K60 |
| Cylinders | 4 |
| Stages | 2 |
| Pump speed (rpm) | 1200 |

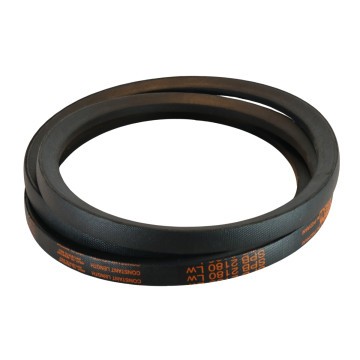

| Belt size | SPB 2180 |
| Flywheel diameter (mm) | 550 mm5.5 dm |
| Pulley diameter (mm) | 180 mm1.8 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 500 |
| Galvanized tank | No |
| Workload (labor/rest %) | 50/50 |
|---|---|
| Maximum pressure (bar) | 11 |
| Cut-in pressure (bar) | 9 bar |
| Intake capacity (l/min) | 1,745 L/m2.908 L/h |
| Free air delivery (l/min) | 1,272 L/m2.12 L/h |
| Free air delivery (m3/h) | 76.32 m³/h1.272 m³/min |
| Noise level dB (A) (0 m) | 79 |
| Noise level dB(A) (4 m) | 59 |
| Noise level dB(A) (7 m) | 54 |
| Sound volume reduction | No |
| Main air connection (") | 1/2 |
| Number of reducable couplings air connections | - |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | Yes |
| Wheels | No |
| Filter with reducer | No |
