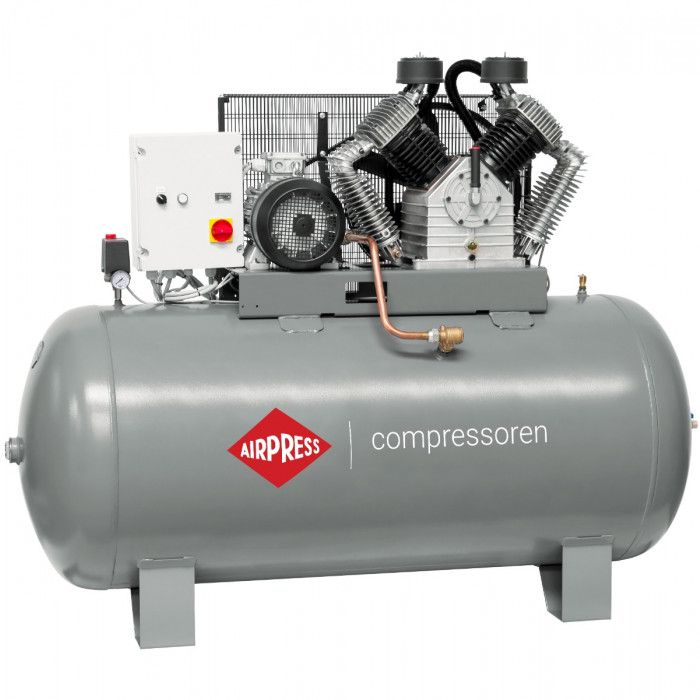

Compressor HK 2000-900 SD 11 bar 15 hp 1395 l/min 900 l star delta switch

Out of stock

SKU 360677

Motor power (hp / kW)	15.0 HP / 11.0 kW
Capacity air receiver (l)	900
Maximum pressure (bar)	11
Intake capacity (l/min)	1,745 L/min29.083 L/s
Free air delivery (l/min)*	1,221.5 L/min20.358 L/s
Noise level dB (A) (0 m)	79
Voltage (V)	400 V / 50 Hz / 3 Ph

EAN 13	8712418334203
Manufacturer	Airpress Polska Sp. z o.o.
Weight (netto) (kg)	660 kg
Length (mm)	2,200 mm2.2 m
Width (mm)	800 mm8 dm
Height (mm)	1,590 mm1.59 m
Drive	V-belt driven
Start	Y-∆
Motor power (hp / kW)	15.0 HP / 11.0 kW
Pump Type	K60
Cylinders	4
Stages	2
Pump speed (rpm)	1200
Belt size	SPB 2180
Flywheel diameter (mm)	550 mm5.5 dm
Pulley diameter (mm)	180 mm1.8 dm
Air Receiver	Yes
Capacity air receiver (l)	900
Galvanized tank	No

Workload (labor/rest %)	50/50
Maximum pressure (bar)	11
Minimum working pressure (bar)	9 bar
Intake capacity (l/min)	1,745 L/min29.083 L/s
Free air delivery (l/min)*	1,221.5 L/min20.358 L/s
Free air delivery (m3/h)*	76.32 m³/h1.272 m³/min
Noise level dB (A) (0 m)	79
Noise level dB(A) (4 m)	59
Noise level dB(A) (7 m)	54
Sound volume reduction	No
Main air connection (")	1/2
Number of reducable couplings air connections	-
Oilfree	No
Voltage (V)	400 V / 50 Hz / 3 Ph
After cooler	Yes
Intercooler	Yes
Wheels	No
Filter with reducer	No
SKU	360677
