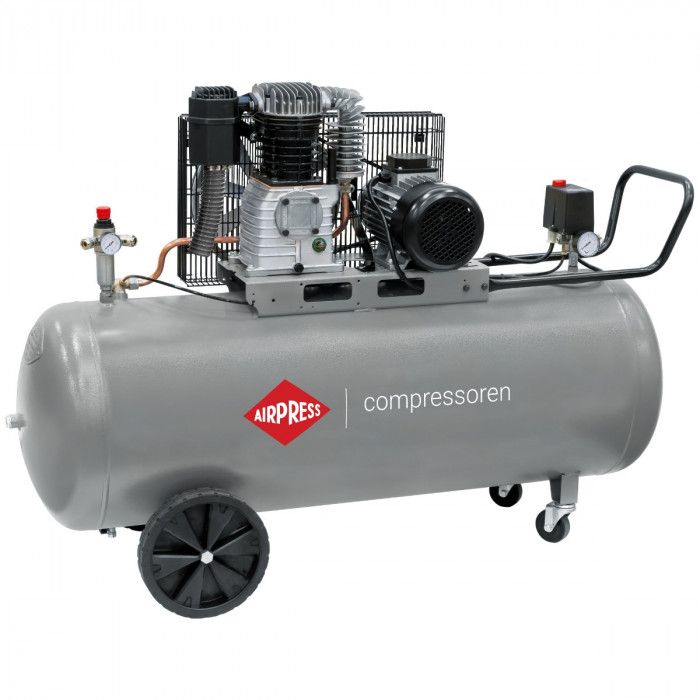

Compressor HK 600-200 10 bar 4 hp 380 l/min 200 l
Out of stock
SKU
360564
| Motor power (hp / kW) | 4.0 HP / 3.0 kW |
|---|---|
| Capacity air receiver (l) | 200 |
| Maximum pressure (bar) | 10 |
| Intake capacity (l/min) | 539 L/min8.983 L/s |
| Free air delivery (l/min)* | 269.5 L/min4.492 L/s |
| Noise level dB (A) (0 m) | 97 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418332445 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 120 kg |
| Length (mm) | 1,420 mm1.42 m |
| Width (mm) | 570 mm5.7 dm |
| Height (mm) | 1,000 mm1 m |
| Drive | V-belt driven |
| Start | Direct |
| Motor power (hp / kW) | 4.0 HP / 3.0 kW |
| Pump Type | K18C |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 1400 |
| Belt size | A48 (1219) |
| Flywheel diameter (mm) | 320 mm3.2 dm |
| Pulley diameter (mm) | 130 mm1.3 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 200 |
| Galvanized tank | No |
| Workload (labor/rest %) | 50/50 |
| Maximum pressure (bar) | 10 |
|---|---|
| Minimum working pressure (bar) | 8 bar |
| Intake capacity (l/min) | 539 L/min8.983 L/s |
| Free air delivery (l/min)* | 269.5 L/min4.492 L/s |
| Free air delivery (m3/h)* | 24.9 m³/h6.917 dm³/s |
| Noise level dB (A) (0 m) | 97 |
| Noise level dB(A) (4 m) | 77 |
| Noise level dB(A) (7 m) | 72 |
| Sound volume reduction | No |
| Connection type | 2 Universal + Euro |
| Main air connection (") | 1/2 |
| Number of reducable couplings air connections | 2 |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | Yes |
| SKU | 360564 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
