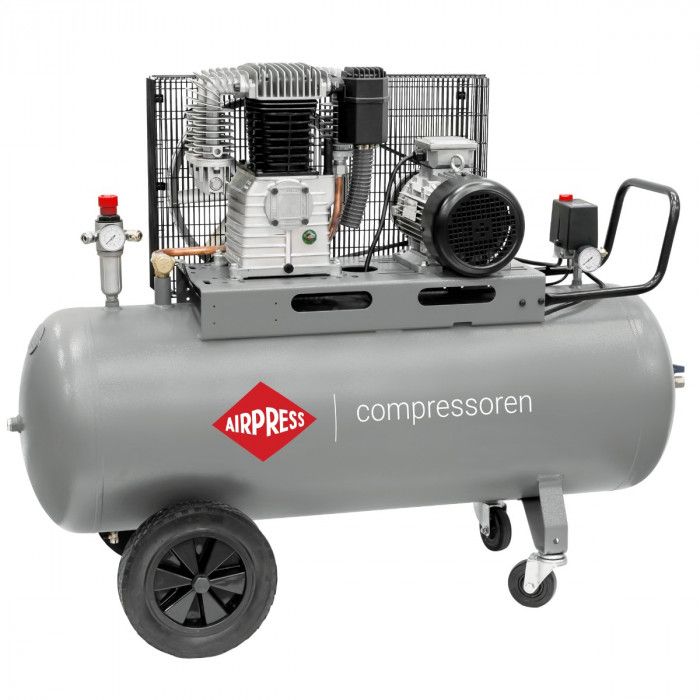

Compressor HK 650-200 11 bar 5.5 hp 490 l/min 200 l
Out of stock
SKU
360671
| Motor power (hp / kW) | 5.5 HP / 4.0 kW |
|---|---|
| Capacity air receiver (l) | 200 |
| Maximum pressure (bar) | 11 |
| Intake capacity (l/min) | 612 L/min10.2 L/s |
| Free air delivery (l/min)* | 428.4 L/min7.14 L/s |
| Noise level dB (A) (0 m) | 74 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418332469 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 124 kg |
| Length (mm) | 1,420 mm1.42 m |
| Width (mm) | 580 mm5.8 dm |
| Height (mm) | 1,120 mm1.12 m |
| Drive | V-belt driven |
| Start | Direct |
| Motor power (hp / kW) | 5.5 HP / 4.0 kW |
| Pump Type | K25 |
| Cylinders | 2 |
| Stages | 2 |
| Pump speed (rpm) | 1184 |
| Belt size | A61 (1550) |
| Flywheel diameter (mm) | 385 mm3.85 dm |
| Pulley diameter (mm) | 150 mm1.5 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 200 |
| Galvanized tank | No |
| Workload (labor/rest %) | 50/50 |
| Maximum pressure (bar) | 11 |
|---|---|
| Minimum working pressure (bar) | 9 bar |
| Intake capacity (l/min) | 612 L/min10.2 L/s |
| Free air delivery (l/min)* | 428.4 L/min7.14 L/s |
| Free air delivery (m3/h)* | 28.14 m³/h7.817 dm³/s |
| Noise level dB (A) (0 m) | 74 |
| Noise level dB(A) (4 m) | 54 |
| Noise level dB(A) (7 m) | 49 |
| Sound volume reduction | No |
| Connection type | 2 Universal |
| Main air connection (") | 1/2 |
| Number of reducable couplings air connections | 2 |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | Yes |
| Wheels | Yes |
| Filter with reducer | Yes |
| SKU | 360671 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
