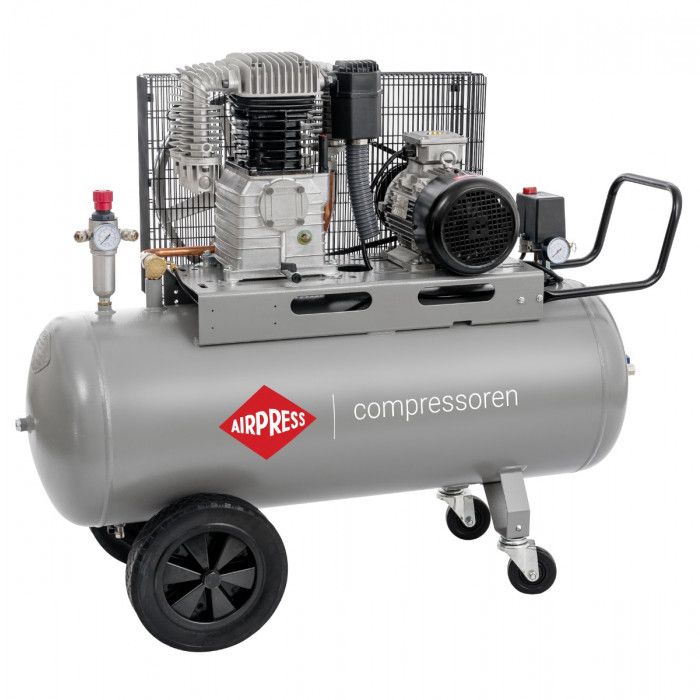

Compressor HK 700-150 Pro 11 bar 5.5 hp/4 kW 476 l/min 150 l
Out of stock
SKU
360643
| Motor power (hp / kW) | 5.5 HP / 4.0 kW |
|---|---|
| Capacity air receiver (l) | 150 |
| Maximum pressure (bar) | 11 |
| Intake capacity (l/min) | 662 L/min11.033 L/s |
| Free air delivery (l/min)* | 463.4 L/min7.723 L/s |
| Noise level dB (A) (0 m) | 75 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418391312 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 110 kg |
| Length (mm) | 1,435 mm1.435 m |
| Width (mm) | 470 mm4.7 dm |
| Height (mm) | 1,240 mm1.24 m |
| Drive | V-belt driven |
| Start | Direct |
| Motor power (hp / kW) | 5.5 HP / 4.0 kW |
| Pump Type | K28 |
| Cylinders | 2 |
| Stages | 2 |
| Pump speed (rpm) | 1290 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 150 |
| Galvanized tank | No |
| Workload (labor/rest %) | 50/50 |
| Maximum pressure (bar) | 11 |
| Minimum working pressure (bar) | 9 bar |
|---|---|
| Intake capacity (l/min) | 662 L/min11.033 L/s |
| Free air delivery (l/min)* | 463.4 L/min7.723 L/s |
| Free air delivery (m3/h)* | 28.56 m³/h7.933 dm³/s |
| Noise level dB (A) (0 m) | 75 |
| Noise level dB(A) (4 m) | 55 |
| Noise level dB(A) (7 m) | 51 |
| Sound volume reduction | No |
| Connection type | 2 Universal |
| Main air connection (") | 1/2 |
| Number of reducable couplings air connections | 2 |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | Yes |
| Wheels | Yes |
| Filter with reducer | Yes |
| SKU | 360643 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
