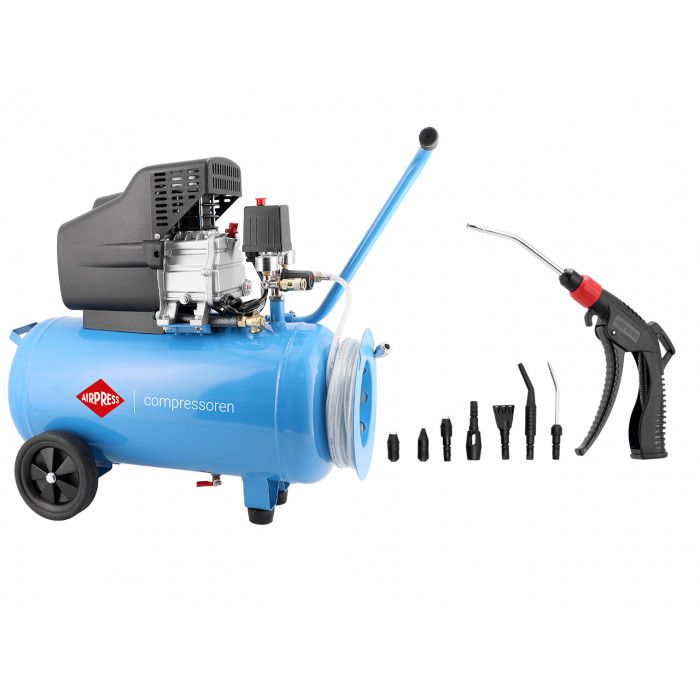

Compressor HL 260-50 8 bar 2.5 hp / 1,8 kW 231 l/min 50 l Plug & Play
Out of stock
SKU
36866-45029
| Motor power (hp / kW) | 2.5 HP / 1.8 kW |
|---|---|
| Capacity air receiver (l) | 50 |
| Maximum pressure (bar) | 8 |
| Intake capacity (l/min) | 257 L/min4.283 L/s |
| Free air delivery (l/min)* | 231 L/min3.85 L/s |
| Noise level dB (A) (0 m) | 97 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| EAN 13 | 87124183839660 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 35 kg |
| Length (mm) | 770 mm7.7 dm |
| Width (mm) | 330 mm3.3 dm |
| Height (mm) | 740 mm7.4 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 2.5 HP / 1.8 kW |
| Cylinders | 1 |
| Stages | 1 |
| Pump speed (rpm) | 2850 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 50 |
| Galvanized tank | No |
| Maximum pressure (bar) | 8 |
| Minimum working pressure (bar) | 6 bar |
| Intake capacity (l/min) | 257 L/min4.283 L/s |
| Free air delivery (l/min)* | 231 L/min3.85 L/s |
|---|---|
| Free air delivery (m3/h)* | 13.86 m³/h3.85 dm³/s |
| Noise level dB (A) (0 m) | 97 |
| Noise level dB(A) (4 m) | 77 |
| Noise level dB(A) (7 m) | 72 |
| Sound volume reduction | No |
| Connection type | Euro / Orion |
| Number of couplings air connections | 2 |
| Number of reducable couplings air connections | 1 |
| Oilfree | No |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| Cable length (m) | 1.5 m |
| After cooler | No |
| Intercooler | No |
| Hose length (m) | 10 |
| Wheels | Yes |
| Filter with reducer | No |
| SKU | 36866-45029 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
