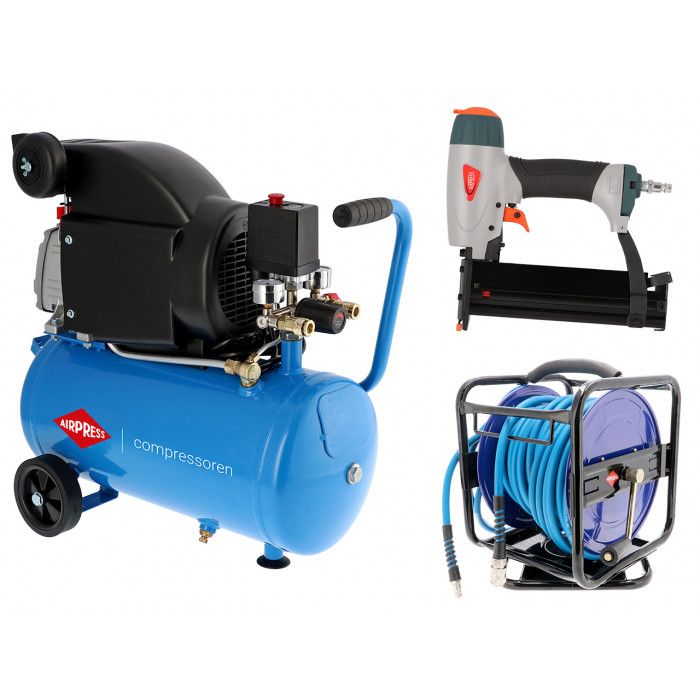

Compressor HL 310-25 + air nail/staple gun minibrads up to 50 mm + air hose reel 30 m - For the handyman!
€289.31
Incl. Tax:
€289.31
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36839-1-45420-5-46573
Product details
| SKU | 36839-1-45420-5-46573 |
|---|---|
| EAN 13 | 8712418044317 |
| Weight (netto) (kg) | 27 kg |
| Length (mm) | 600 mm6 dm |
| Width (mm) | 330 mm3.3 dm |
| Height (mm) | 560 mm5.6 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 2.0 HP / 1.5 kW |
| Cylinders | 1 |
| Stages | 1 |
| Pump speed (rpm) | 2850 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 24 |
| Galvanized tank | No |
| Workload (labor/rest %) | 30/70 |
| Maximum pressure (bar) | 8 |
| Cut-in pressure (bar) | 6 bar |
| Intake capacity (l/min) | 196 L/m1.176 kL/s |
|---|---|
| Free air delivery (l/min) | 157 L/m56.52 m³/min |
| Free air delivery (m3/h) | 9.42 m³/h2.617 dm³/s |
| Noise level dB (A) (0 m) | 96 |
| Noise level dB(A) (4 m) | 76 |
| Noise level dB(A) (7 m) | 71 |
| Sound volume reduction | No |
| Connection type | 2 Universal |
| Main air connection (") | 1/4 |
| Number of couplings air connections | 2 |
| Number of reducable couplings air connections | 1 |
| Oilfree | No |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
Recommended
Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Press to skip carousel
Documents & Manuals
Download PDF
Manual EN/FR/NL/DE/PL 45420-S, 45420-5, 45423-7, 45455-5, 45438-5, 45427-5, 45448-5
Manual EN/FR/NL/DE/PL/ES/UA/CZ/LT/LV/EE/RO/SK/HU 36546, 36744-E, 36839-1, 36856, 36832, 36852, 36833, 36843, 36888, 36834, 36826, 36827, 36828, 36844-E, 36891, 36871, 36872
13.12.2024 - BLUE SERIES PISTON COMPRESSORS OIL LUBRICATED_2024 - WEB.pdf
